Cable Tray Roll Forming Machine Suitable Steel Coi, GI Coil, Carbon Steel
- T/T L/C D/P D/A
- 7 days
You May Like
-
GY180 Roll Forming Machine for Light Steel Frames, Sheet Forming Machine
-
HS41-210-420 Concealed Roof Panel Rool Forming Machine
-
C / Z / U Section Roll Forming Machine for Purlin Profiles
-
Touch Screen Operation Rack Roll Forming Machine for Upright, Column, Box Beam
-
1250mm Forming Width Metal Deck, Sheet Forming Machine With 4KW Hydraulic Station Power
-
0.5 - 1.5mm Material Thickness Stud & Track Roll Forming Machine
Product Details
| Brand Name | HS | Place of Origin | China | |
| Model Number | Roll Forming Machine |
Product Description
Certification:ISO9001, CE

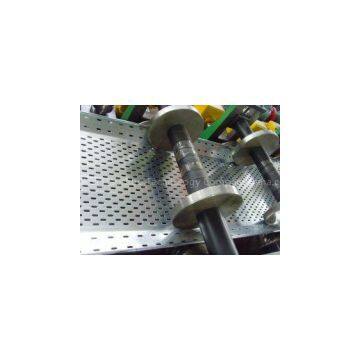

Cable Tray Roll Forming Machine
I.??????? WORK FLOW
Un-coiler – Feeder – Leveler – NC Feeder – Press Machine – Roll Former – Hydraulic Cutter – Rack – Electric Control
II.????? LINE EQUIPMENT
1.????? Un-coiler……………..…………………………….....…………..1 set
2.????? Feeder & Leveler……………………………….…….................1 set
3.????? NC Feeder & Press Machine………………………………..…1 set
4.????? Roll former………………………….….…………………………1 set
5.????? Hydraulic Cutter………………………………………………….1 set
6.????? Run-out Rack………………..........................................................1 set
7.????? Hydraulic Pump Station……………………….…………………1 set
8.????? Electric Control Cabinet……….................................................…1 set
III.??? SPECIFICATION:
2??????? Suitable steel coil: GI coil, carbon steel, etc
2??????? Material thickness: 0.5-1.5mm, 1-2.5mm
2??????? Cable tray width: 100-600mm or as per need
2??????? Machine work speed: 5-15m/min
2??????? Power supply: AC380V±10%, 50Hz
2??????? Total line length: about 18 meter
2??????? Total gross/net weight: approx 15 tons
