Home > Products > Slitting Line > Slitting Machine for Silicon Steel Width 1000/1250mm, High Precision, High Speed Slitting
Slitting Machine for Silicon Steel Width 1000/1250mm, High Precision, High Speed Slitting
- T/T L/C D/P D/A
- 7 days
You May Like
-
Combined Slitting And Cut to Length Line Suitable for Hot Rolled Coil, Cold Rolled Coil
-
Tension Leveling Machine, Cut to Length Line for Steel Coils With High Precision
-
15KW Door Frame Roll Forming Machine, Hydraulic Automatic Cutting
-
Edge Trimming High Precision Leveling Cut to Length Line
-
Sheet Cut to Length Line for Carbon Steel, Galvanized Steel
-
3-16mm Slitting Line for Carbon Steel, Galvanized Steel
Product Details
| Brand Name | LX | Place of Origin | China | |
| Model Number | CRSSL |
Product Description
Certification:ISO9001, CE

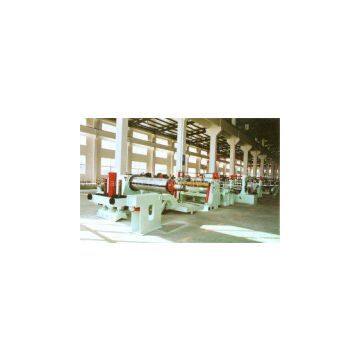

Slitting Machine for Silicon Steel(0.23-1.0mm), width 1000/1250mm, high precision, high speed slitting
Main technical data:
Material: grain oriented and non oriented electrical steel strip
Thickness:0.23mm-0.5mm
Coil width:1000/1250mm
Max. coil outer diameter:1200mm
Coil inner diameter: >=508mm
Max. coil weight: 6000kg
Max. line speed: 0-100m/min
Slitting width: Min. 25mm
Slitting width tolerance: Under ±0.02mm
Components:
Feeding trolley, hydraulic single-load un-coiler, feeding unit, plate head cutter, rectification unit, slitting cutter, scrap re-coiler, loop, pre-distribution & tensioning machine, rewinding machine, unloading trolley, hydraulic & electric control system
