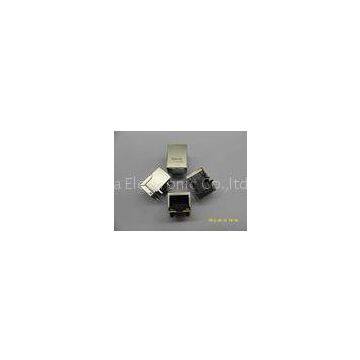

RJ45 with Transformer, 10/100BASE 1x1 Tab Down Transformer RJ45 Jack

Material specifications:

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.

Electrical Specifications:? at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

??????????? 30-60MHZ -14.0dBmin

??????????? 60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

???????? 30-60MHZ -35.0dBmin

???????? 60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH? @100KHZ 100Mv 8mA?? DC

Schematic:

Applications:

? Integrated RJ45 connector main used to :

? 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,

internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

For example:

Competitive?Advantage:

Keyouda?has?various?types?of?appearance?and?many?kinds?of?internal?schematic?products,high?quality,?customer?firstly?,

100%?test,?0?defect,?short?lead?time?are?our?best?advantages
