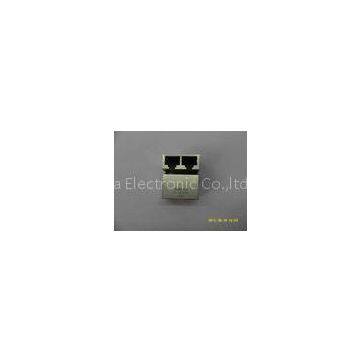

RJ45 with Transformer, Custom 10/100 BASE 2 Port RJ45 Tab Down with lan Transformer
- T/T L/C D/P D/A
- 7 days
You May Like
-
1 X 4 Ports Tab Down Transformer RJ45 Plug 10 / 100BASE without LED
-
RJ45 with Transformer, 10/100BASE 4-Port Tab Down Receiver filter RJ45 connector with led and EMI
-
10/100 Base 2X1 Tab Down RJ45 Receiver filter, RJ45 with Transformer
-
21.4mm 100M 1x1 Tap Up Transformer RJ45 Transformers With led
-
1x1 Tap Up RJ45 Plug with 100BASE Transformers and OEM PBT Black Housing for Network Switch Applicat
-
Tap Up RJ45 Ethernet Connector with 10/100BaseTransformer, RJ45 with Transformer
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | KRJ-215WCNL |
Product Description
Certification:SGS、UL、
?RJ45 with Transformer, Custom 10/100 BASE 2 Port RJ45 Tab Down with lan Transformer
10/100?BASE?1x2?Tab?Down?Transformer?RJ45 ??KRJ-215WCNL
Part Number:KRJ-215WCNL
Mechanical Dimensions:(Unit:mm)
????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????? ? ???? .XX Tolerance:0.25
???????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????? ?? ?? .XXX Tolerance:0.13
PCB Layout Mouting Hole:(Unit:mm)
??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????? .XX Tolerance:0.25
???????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????? .XXX Tolerance:0.13
Material specifications:
Plastic core:Glass fiber filler PBT Black(UL94V-0) Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl Housing:Phenolic, PBT Black (UL94V-0) Metal shell:Copper Alloy ,Tin and Nickel platedRJ45?,in?order?to?keep?good?touch?between?gold?finger?and?crystal?head,should?paint?the?gold?on?the?
surface,there?is?6u,15u,30,50u,usually?use?6u,according?to?customer’s?request?and?cost?to?proceed, ?
gold?finger?insert?and?pull?life?should?be?750?times?above
Electrical Specifications:? at 25℃
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
??????????? 30-60MHZ -14.0dBmin
??????????? 60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
???????? 30-60MHZ -35.0dBmin
???????? 60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH? @100KHZ 100Mv 8mA?? DC
Schematic:
Description:
Applications:
Integrated RJ45 connector main used to :
? 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.For example:
Competitive?Advantage:
Keyouda?has?various?types?of?appearance?and?many?kinds?of?internal?schematic?products,high?quality,?
customer?firstly?,100%?test,?0?defect,?short?lead?time?are?our?best?advantages
