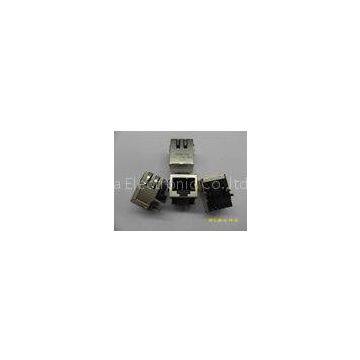

Integrated 10/100base 1x1 Tab Down RJ45 With Transformer / RJ45 Transmitter Filter
- T/T L/C D/P D/A
- 7 days
You May Like
-
1x1 Tab Down 10/100base RJ45 Network Filter, RJ45 With Transformer
-
RJ45 With Transformer, 10/100BASE 1x1 Tab Down Transformer RJ45 Jack
-
RJ45 With Transformer, Single Port 10/100base Tab Down Telecom Connector With LED
-
RJ45 With Transformer, 10/100base 1x1 Tab Down Transformer RJ45 Shielded Without LED
-
1x1 Tab Down Integrated RJ45 Filter Without Led for 10/100BASE-TX, RJ45 With Transformer
-
RJ45 With Transformer, Integrated 10/100base Tab Down RJ45 Moudle Connector With Transformer
Product Details
| Brand Name | DGKYD | Place of Origin | China | |
| Model Number | KRJ-118BABNL |
Product Description
Certification:SGS、UL、
Integrated 10/100base 1x1 Tab Down? RJ45 with Transformer / RJ45 Transmitter filter
10/100BASE?1x1?Tab?Down?Transformer?RJ45 without? LED KRJ-118BABNL
Product Number:KRJ-118BABNL
Description
RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.
10/100Base-Tx RJ45 single port 1X1 Vertical without LED with top entry Single port 1X1 Tab-Down RJ45 with internal magnetics ???????????? Internal magnetics are 100% electrically tested for HI-POT and functionality Suitable for CAT5&6 fast Ethernet Cable or better UTP 350uHminimum OCL with 8mA bias current High performance for maximum EMI suppression Minimum 1500Vrms isolation per IEEE 802.3 requirement ?ROHS-6 peak wave solder temperature rating 260℃ Operating temperarure range :0℃ to +70℃ Storage temperature range :-40℃ to +85℃ Number of positions:8 Number of contacts loaded:8 Shield:YES Rohs compliant Length:21.3mm LEDS:NO EMI fingers:YES Usage:HFJ11-1G02ERL/KRJ-118BABNLMechanical Dimensions:(UNIT:mm)
. XX Tolerance:0.25
.XXX Tolerance:0.13
Specifications:
Material specifications:
Plastic core:Glass fiber filler PBT Black(UL94V-0) Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl Housing:Phenolic, PBT Black (UL94V-0) Metal shell:Copper Alloy ,Tin and Nickel platedElectrical Specifications: at 25℃
．Insertion Loss:1-100MHZ -1.0dBmax
．Rturn Loss:1-30MHZ -16.0dBmin
??????????? 30-60MHZ -14.0dBmin
??????????? 60-80MHZ -10.0dBmin
．Cross Talk:1-30MHZ -40.0dBmin
???????? 30-60MHZ -35.0dBmin
???????? 60-80MHZ -30.0dBmin
．CMR:1-100MHZ -35dBmin
．Hi-pot:1500v AC 6S 1mA
．Turn Ratio:1CT:1CT±3%
．OCL:350uH? @100KHZ 100Mv 8mA?? DC
Schematic:
Applications:
? Integrated RJ45 connector main used to :
? 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,
internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
Competitive?Advantage:
Keyouda?has?various?types?of?appearance?and?many?kinds?of?internal?schematic?products,high?quality,?customer?firstly?,
100%?test,?0?defect,?short?lead?time?are?our?best?advantages
