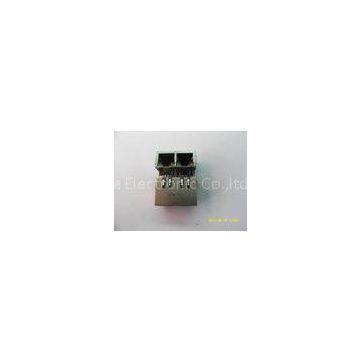

1x2 Tab Down rj45 double port shield Transmitter filter with 10/100BASE Transformers,with 90 degree

10/100Base-Tx RJ45 double port 1X2 Vertical with LEDS with top entry Double port 1X2 Tab-Down RJ45 with internal magnetics ???????????? Internal magnetics are 100% electrically tested for HI-POT and functionality Suitable for CAT5&6 fast Ethernet Cable or better UTP 350uHminimum OCL with 8mA bias current High performance for maximum EMI suppression Minimum 1500Vrms isolation per IEEE 802.3 requirement ?ROHS-6 peak wave solder temperature rating 260℃ Operating temperarure range :0℃ to +70℃ Storage temperature range :-40℃ to +85℃ Number of positions:8 Number of contacts loaded:8 Shieded:YES Rohs compliant Length:21.5mm LEDS:YES EMI fingers:YES LEFT LED:Green,RIGHT LED:Yellow Usage:KRJ-201DNL

Mechanical Dimension:(UNIT:mm)

?. XX Tolerance:0.25

.XXX Tolerance:0.13

PCB Layout Mouting Hole:(UNIT:mm)

?. XX Tolerance:0.25

.XXX Tolerance:0.13

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0) Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl Housing:Phenolic, PBT Black (UL94V-0) Metal shell:Copper Alloy ,Tin and Nickel plated

Electrical Specifications:? at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

??????????? 30-60MHZ -14.0dBmin

??????????? 60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

???????? 30-60MHZ -35.0dBmin

???????? 60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH? @100KHZ 100Mv 8mA?? DC

Schematic:

LED Specifications:

Emitting color	Dominant wavelength(nm) (min/max)	Forward voltage (v)	Forward current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Applications:

Integrated RJ45 connector main used to :

? 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive?Advantage:

Keyouda?has?various?types?of?appearance?and?many?kinds?of?internal?schematic?products,high?quality,?

customer?firstly?,100%?test,?0?defect,?short?lead?time?are?our?best?advantages
