3PH-380V / 50Hz / 60Hz R22 Refrigerant injection mold chiller plastic auxiliary machinery

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	XHOUG		Place of Origin	China
Model Number	XHOUG

Product Description

Delivery Time:20 – 35 work days
Certification:CE & ISO9001:2000

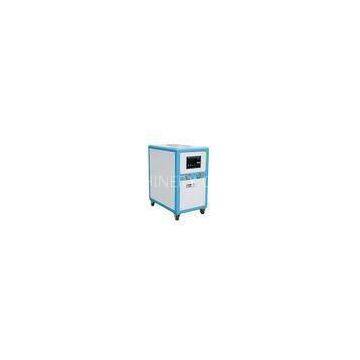

3PH-380V / 50Hz / 60Hz R22 Refrigerant injection mold chiller plastic auxiliary machinery

injection mold chiller (plastic chiller, plastic machine chiller, plastic auxiliary machine)with branded USA copeland compressor

injection mold chiller (plastic chiller, plastic machine chiller, plastic auxiliary machine)with branded USA copeland compressor
?

Item	ZCL-03S	ZCL-05S	ZCL-08S	ZCL-10S	ZCL-12S	ZCL-16S	ZCL-20S	ZCL-26S	ZCL-40S	ZCL-50S
Refrigerating Capacity	W	8420	14285	22358	29036	35305	44715	56678	72590	112078	142276
Kcal/Hr	7250	12300	19250	25000	30400	38500	48800	62500	96500	122500
Btu/Hr	28768	48806.4	76384	99200	120063	152768	193638.4	248000	382912	486080
Input Power (KW)	2.8	4.2	6.7	8.3	10.2	13.3	16.2	20.9	33.2	42.5
Power Supply	3PH-380V/50Hz/60Hz
Refrigerant	R22(404A)
Cooling Water Flow(L/min)	50	80	130	160	210	260	350	400	660	800
Cooling Water Outlet&Inlet (in)	1-1/4\"	1-1/2\"	1-1/2\"	1-1/2\"	1-1/2\"	1-1/2\"	2\"	2-1/2\"	2-1/2\"	2-1/2\"
Ambient temp	≤40
Refrigerating Water Flow(L/min)	90	90	210	210	210	600	600	600	800	800
Refrigerating Water Outlet&Inlet (in)	3/4\"	1\"	1-1/2\"	1-1/2\"	1-1/2\"	1-1/2\"	2\"	2\"	2-1/2\"	3\"
Volume of Water Tank(L)	70	130	220	220	300	300	400	400	500	500
External Dimension	L/(mm)	950	1280	1150	1150	1320	1320	1530	1530	2300	2300
W/(mm)	680	680	700	700	800	800	880	880	1000	1000
H/(mm)	1200	1300	1450	1450	1450	1450	1600	1600	1250	1250
Weight (KG)	110	145	170	240	320	450	520	640	830	930

Note : The above-listed technical parameters are based on the ambient temp.at 35, Refrigerating water temp. at 20,Cooling water temp. at 30.To guarantee constant improvement of technology, the above parameters shall be changed without further notice. Othe
