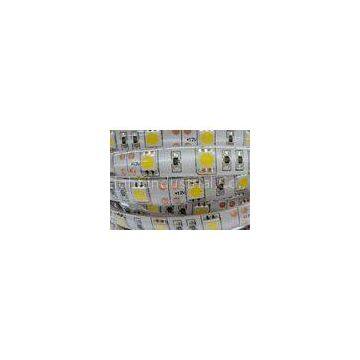

Dimmable LED Strips, White / Blue / Yellow Flexible LED Strip Light / Lighting

Dimmable LED Strips, White / Blue / Yellow Flexible LED Strip Light / Lighting

Dimmable LED strip, white/blue/yellow, CE RoHs certificated, 3 years warranty

Description:

Specifications:

US-F5050-30I?Series?of?Silicone?tube?encased?and?Epoxy?glue?injected?waterproof?IP68

Dimension:?5000*12*4mm
LED?Chip:??5050?SMD?TOP?LED
Emitting?color:?Red,?Yellow,?Blue,?Green,?warm?white,?cool?white,?RGB?colors
LED?Quantity:?30pcs/meter,?total?150pcs
Material:?FPC?+?Silicone?tube?encased?and?Epoxy?glue?injected
FPC?color:?Yellow,?White,?Black
Beam?Angle:?>120°
Working?Voltage:?DC12V?/?DC24V
Rated?Power:?7.2W/m

Life?Span:?≥50000?hrs,
Working?Temperature:?-25℃~55℃
Working?Humidity:?10%~95%
Protection?Degree:?IP68
Packaging:?5m/roll

5050?SMD?LED?Strip?dimension?(unit:?mm)

Strip?Connection:

To?cut?and?seal?at?one?end,?please?follow?the?steps:?A1?A2?A3?B1?B2
To?cut?and?install?waterproof?connector?at?one?end,?please?follow?the?steps:?A1?A2?A3?C1?C2?C3?C4?C5
A1:?Cut?the?light?strip?at?the?mark?”scissors”?or?by?every?3?LED\'s.
A2:?Screw?to?open?the?glue?cap.
A3:?Use?the?thrust?(another?side?of?glue?cap)?to?puncture?the?surface.
B1:?Inject?the?silicon?gel?into?the?end?cap?without?holes.
B2:?Push?the?strip?into?the?cap?and?let?gel?dry?for?1?hour.
C1:?Put?the?connector?wire?through?the?end?cap?holes.
C2:?Solder?the?wire?onto?the?PCB.
C3:?After?solder?the?two?wires,?push?the?strip?into?the?end?cap?with?wires?carefully.
C4:?Inject?the?silicon?glue?at?the?end?of?strip?and?cap.
C5:?Make?sure?end?cap?and?strip?are?connected?well?and?let?gel?dry?for?1?hour.

Accessories:

Connectors are necessary if you want to connect the cut sections together or connect a section to power. (Connector of strip to strip and connector of strip to power are both available)?

Installation:

Waterproof flexible strips have the ability to produce continuous light connection for long distances while maintaining uniformity. They can be interconnected using connectors or cut in marked areas for shorter installation.?

Package:

250meters/50rolls?packed?in?one?carton
Carton?size:?52?x?26?x?28?cm

Applications:
1) Architectural decorative lighting
2) Archway, canopy & bridge edge lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
8) Backlighting for signage letters
9) Channel letter lighting
10) Cove lighting
