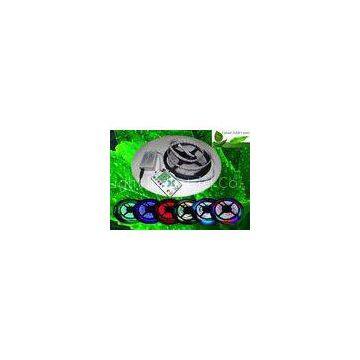

SMD 5050 IP68 Flexible LED Strip Light For Emergency Hallway Lighting and Auditorium Lighting

SMD 5050 IP68 Flexible LED Strip Light For Emergency Hallway Lighting and Auditorium Lighting

Quick Detail:

Waterproof IP68, Silicone tube encased and Epoxy glue injected

High luminance efficient and low power consumption

White, Warm white, Red,?Yellow,?Blue,?Green, RGB color available

Description:

Specifications:

US-F5050-30I?Series?of?Silicone?tube?encased?and?Epoxy?glue?injected?waterproof?IP68

Dimension:?5000*12*4mm
LED?Chip:??5050?SMD?TOP?LED
LED?Quantity:?30pcs/meter,?total?150pcs
Material:?FPC?+?Silicone?tube?encased?and?Epoxy?glue?injected
FPC?color:?Yellow,?White,?Black

Emitting?color:?Red,?Yellow,?Blue,?Green,?warm?white,?cool?white,?RGB?colors
Working?Voltage:?DC12V?/?DC24V
Rated?Power:?7.2W/m

Life?Span:?≥50000?hrs,

Beam?Angle:?>120°
Working?Humidity:?10%~95%

Working?Temperature:?-25℃~55℃
Protection?Degree:?IP68
Packaging:?5m/roll

5050?SMD?LED?Strip?dimension?(unit:?mm)

Strip?Connection:

To?cut?and?seal?at?one?end,?please?follow?the?steps:?A1?A2?A3?B1?B2
To?cut?and?install?waterproof?connector?at?one?end,?please?follow?the?steps:?A1?A2?A3?C1?C2?C3?C4?C5
A1:?Cut?the?light?strip?at?the?mark?”scissors”?or?by?every?3?LED\'s.
A2:?Screw?to?open?the?glue?cap.
A3:?Use?the?thrust?(another?side?of?glue?cap)?to?puncture?the?surface.
B1:?Inject?the?silicon?gel?into?the?end?cap?without?holes.
B2:?Push?the?strip?into?the?cap?and?let?gel?dry?for?1?hour.
C1:?Put?the?connector?wire?through?the?end?cap?holes.
C2:?Solder?the?wire?onto?the?PCB.
C3:?After?solder?the?two?wires,?push?the?strip?into?the?end?cap?with?wires?carefully.
C4:?Inject?the?silicon?glue?at?the?end?of?strip?and?cap.
C5:?Make?sure?end?cap?and?strip?are?connected?well?and?let?gel?dry?for?1?hour.

Accessories:

Connectors are necessary if you want to connect the cut sections together or connect a section to power. (Connector of strip to strip and connector of strip to power are both available)?

Installation:

Waterproof flexible strips have the ability to produce continuous light connection for long distances while maintaining uniformity. They can be interconnected using connectors or cut in marked areas for shorter installation.?

Package:

250meters/50rolls?packed?in?one?carton
Carton?size:?52?x?26?x?28?cm

Applications:
?

1) Architectural decorative lighting
2) Archway, canopy & bridge edge lighting
3) Amusement park, theater & aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
6) Stairway accent lighting
7) Concealed lighting
