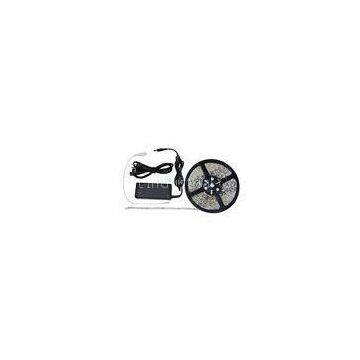

High Brightness FPC Flexible LED Strip Light Warm White with Epistar Chip 5050 SMD LED

High Brightness FPC Flexible LED Strip Light Warm White with Epistar Chip 5050 SMD LED

Description:

Specifications:

US-F5050-60N

Dimension: 5000*10*2mm
LED Chip:??5050 SMD TOP LED

Material: FPC

FPC color: Yellow, White, Black
Emitting color: Red, Yellow, Blue, Green, warm white, cool white, RGB colors

Working Voltage: DC12V / DC24V
LED Quantity: 60pcs/meter, total 300pcs

Rated Power: 14.4W/m
Beam Angle: >120°
Life Span: ≥50000 hrs,
Working Humidity: 10%~95%
Protection Degree: IP33

Working Temperature: -25℃~55℃
Packaging: 5m/roll

5050?SMD?LED?Strip?dimension?(unit:?mm)

ACCESSORIES:

We?provided?T1?and?T2?type?2pcs?for?single?color?series?non-waterproof?light?strip?each?reel.?(For?free)?
Wiring?connector?—?wire?length?20cm

Strip?Connection:

Connectors are necessary if you want to connect the cut sections together or connect a section to power. (Connector of strip to strip and connector of strip to power are both available)

1. Cut along the mark line, tear a little bit 3M tape from the mark. If 3M tape is not peeled off a little, it will be not easy to insert the strip into the connector.
2. Pull the black plastic lock out from the connector, insert strip.
3. Make sure the soldering pads fully touch the conjunction metal.
4. Push the plastic lock back towards the middle in the lock position.
3. Do not use too much strength while pulling the plastic lock, otherwise it can destroy the connector.

Notes?for?flexible?LED?strip?mounting:

1.?Please?make?sure?that?the?back-surface?of?SMD?LED?ribbons?are?clean?and?dry.?Dirt,?oil,?silicon?oil,?etc.
2.?Make?sure?that?the?adhesive?backing?is?removed?completely?to?guarantee?perfect?mounting.
3.?After?the?SMD?LED?ribbon?is?well-positioned,?press?the?strip?with?an?appropriate?force.

Installation:

Safety?and?Maintenance?Information:

1.?SMD?LED?ribbon?itself?and?all?its?components?may?not?be?mechanically?stressed.?
2.?Don\'t?damage?or?destroy?conducting?paths?on?the?circuit?board?while?installation.??
3.?To?guarantee?safety,?only?qualified?personnel?are?allowed?to?install?LED?strips.??
4.?Make?sure?SMD?LED?ribbons?are?mounted?to?correct?electrical?polarity.??
5.?Parallel?connection?is?highly?recommended?for?its?high?safety.?
6.?Serial?connection?is?not?recommended?because?unbalanced?voltage?drop?may?damage?SMD?LED?strips.??
7.?Insufficient?and?unstable?power?supply?may?cause?flexible?strip?damage.?
8.?Don\'t?install?SMD?LED?ribbons?directly?on?metallic?or?any?other?conductive?surfaces.

Power?supply:

Adequate?and?proper?power?supply?should?be?applied?to?run?150pcs?SMD?LEDs/5m?5050?LED?Light?Strip?
Power?supply?with?voltage?DC?12V?should?only?be?used.

P
