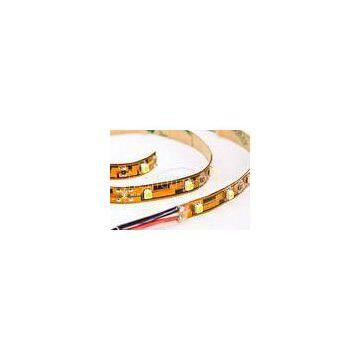

Red, Yellow, Blue, Green Flexible LED Strip Light3528 SMD LED Flex Strips High Bright

Red, Yellow, Blue, Green Flexible LED Strip Light,3528 SMD LED Flex ?Strips High Bright

High quality 3528 SMD LED strip, 60leds/m CE & RoHs certificated, 3years warranty?

Description:

Specifications:

US-F3528-60N

Dimension: 5000*8*2mm
LED Chip:??3528 SMD TOP LED
Emitting color: Red, Yellow, Blue, Green, warm white, cool white
LED Quantity: 60pcs/meter, total 300pcs
Material: FPC
FPC color: Yellow, White, Black
Beam Angle: >120°
Working Voltage: DC12V / DC24V
Rated Power: 4.8W/m

Life Span: ≥50000 hrs,
Working Temperature: -25℃~55℃
Working Humidity: 10%~95%
Protection Degree: IP33
Packaging: 5m/roll

3528 SMD LED Strip dimension (unit: mm)

ACCESSORIES:

We provided T1 and T2 type 2pcs for single color series non-waterproof light strip each reel. (For free)
Wiring connector — wire length 20cm

Strip Connection:

Connectors are necessary if you want to connect the cut sections together or connect a section to power. (Connector of strip to strip and connector of strip to power are both available)

1. Cut along the mark line, tear a little bit 3M tape from the mark. If 3M tape is not peeled off a little, it will be not easy to insert the strip into the connector.
2. Pull the black plastic lock out from the connector, insert strip.
3. Make sure the soldering pads fully touch the conjunction metal.
4. Push the plastic lock back towards the middle in the lock position.
5. Do not use too much strength while pulling the plastic lock, otherwise it can destroy the connector.

Notes for flexible LED strip mounting:

1. Please make sure that the back-surface of SMD LED ribbons are clean and dry. Dirt, oil, silicon oil, etc.
2. Make sure that the adhesive backing is removed completely to guarantee perfect mounting.
3. After the SMD LED ribbon is well-positioned, press the strip with an appropriate force.

Installation:

Safety and Maintenance Information:

1. SMD LED ribbon itself and all its components may not be mechanically stressed.
2. Don\'t damage or destroy conducting paths on the circuit board while installation.?
3. To guarantee safety, only qualified personnel are allowed to install LED strips.?
4. Make sure SMD LED ribbons are mounted to correct electrical polarity.?
5. Parallel connection is highly recommended for its high safety.
6. Serial connection is not recommended because unbalanced voltage drop may damage SMD LED strips.?
7. Insufficient and unstable power supply may cause flexible strip damage.
8. Don\'t install SMD LED ribbons directly on metallic or any other conductive surfaces.

Power supply:

Adequate and proper power supply should be applied to run 300pcs SMD LEDs/5m 3528 LED Light Strip
Power supply with voltage DC 12V should only b
