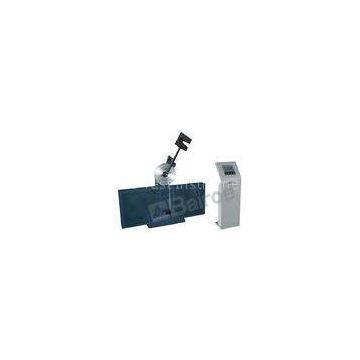

CBD-300 Pendulum Impact Testing Machines To Inspect Metal Properties, FPGA Unit Controlled

Brand Name	Bairoe		Place of Origin	China
Model Number	CBD-300/CBD-500

Delivery Time:A month
Certification:ISO 9001, CE

CBD-300 Pendulum Impact Testing Machines To Inspect Metal Properties, FPGA Unit Controlled

Main applications: tenacious metals including iron and alloy. The product is controlled by a FPGA unit, which operates at a high speed and improved precision. It is integrated with a large storage for test data recording and saving and functionalities including automatic/manual printing. The buttons presents a convenient and highly efficient user-interaction interface. The pendulum returns to its initial position by exploiting the remaining energy when specimen breaks, getting prepared for the next impact. This product is reliable, stable and efficient on energy consumption, presenting greater advantages especially in labs, iron forging and machinery manufacture sites where great numbers of impacts are performed. This product is connected to a computer with a RS232 serial port or a USB port. This product complies with the standards and requirements of GB/T 3808-2002, GB/T 229-2007. The CBD series of touch-screen electronic pendulum impact testing machine is mainly designed to measure the impact-resistant performance of metals to inspect its properties under dynamic loads.

Features:

160,000-color true-color touch screen for display and operate, featuring a beautiful and user-friendly interface. Controlled by a fast and accurate FPGA unit. Integrated with a large storage for testing data recording and saving. Support for automatic/manual printing. Impact energy displayed intuitively on the LED screen in a large font size. Capable of communications with a computer, enabling computer software controlled operations. Software logic protection on installing, latching, unlocking and releasing, eliminating operation mistakes. Specially designed control panel, beautiful and easy-to-use.

Technical Specifications:

Model	CBD-300	CBD-500

Impact energy

300J/150J

500J/250J

Dial range and graduation

Impact energy range

0～300J/0～150J

0～500J/0～250J

Rotation resolution

0.025°

Energy resolution

2 places after decimal point

Pendulum torque

Pendulum impact energy

300J/150J

500J/250J

Pendulum torque

160.7695N·m / 80.3848N·m

267.9492N·m / 133.9746N·m

Release angle

150°

Distance from striking center to support center

750mm

800mm

Impact speed

5.2m/s

5.4m/s

Anvil span

40mm

Anvil radius

1～1.5mm(GB/T 3808,GB/T229)

1mm:Optional

Anvil taper angle

0°

Striker edge radius

2～2.5mm(GB/T 3808,GB/T229)

8mm:Optional

Striker tip angle

30°

Striker thickness

16mm

Specimen dimensions

10×10×55mm3

Power supply

Three-phase, four-wire, 300W/AC380V/50Hz

Three-phase, four-wire, 600W/AC380V/50Hz

Frame dimensions

2124×600×1340mm3
