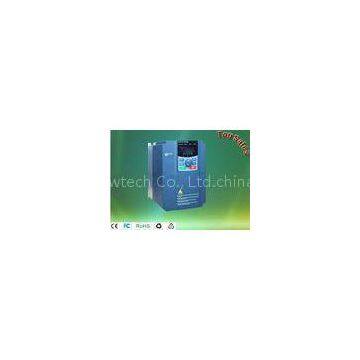

5.5kw Vector Control Variable Frequency Drive VFD Three Phase Inverter

Powtech?Pt200?Series?High?Quality Vector?Control?5.5kw?Frequency?Inverter

Product?Description

Powtech?LED?/?OLED?5.5kw?Sensorless?Vector?Frequency?inverter?/?VFD?/?Converter?/?AC?Drive

Quick?Detail:

Size?:?220/183.5/150?MM????????????????????G.W /?N.W :?4KG /3KG?????????????????????????

Frequency?Range?:?0~400hz??????????????Warranty?Period?:?24?month??????????????

Control?system:?based?on?the?DSP?high-performance?vector?control?

Way?of?control?:?V/F?control,?open-loop?magnetic?flux?vector?control?,?PG?vector?control

Description:

1.?Using?DSP?as?the?core?of?control?unit?to?achieve?high-speed?high-performance?control;
2.?Way?of?speed?control:?SVC,?VC,?V/F?control,?torque?control;

3.?Automatically?idendtify?the?motor?parameters,?intelligent?adjustment?to?the?best?control?mode;

4.?Deard?time?compensation?and?automatic?slip?compensation?function,?low?frequency?0.25HZ?can?be?

achieved?under?sensorless?vector?control;

5.?Simple?PLC?function?can?realize?up?to?16?segments?speed?and?4?segments?acceleration?control;

6.?One?key?to?shuttle”?keyboard,?swirling?free,?two?way?custom?button?with?the?demand?for?expansion;

7.?Multi-language,?humanization?display?menu,?highlighted?OLED+LED?simultaneous?display?3?groups?

of?state?parameters;

8.?Keyboard?is?hot-pluggable?and?can?store/copy?4?groups?of?operating?parameter?programs;

9.?Powerful?communications?function?which?can?support?standard?to?support?standard?RS485?and?

Modbus,?meanwhile?providing?remote?keyboard?control;

10.?Dual?analog?input,?custom?control?mode,?free?combination?of?control?factors;

11.?Short-circuit?protection,?more?safer?and?more?stable;

12.?New?thermal?management?structure,?unique?duct?design?and?thermostat?heat?agencies,?allow?the?

product?to?run?more?stable?and?longer;?

13.?Standards?EMC?design?to?minimize?pollution?for?power;

14.?All?strengthened?PCB?coating?working?well?in?kinds?of?environments.

Application?:?

Metallurgy,?petroleum,?chemical,?textile,?electric?power,?building?materials,?coal,?medicine,?food,?paper,

plastics,?printing?and?dyeing,?lifting,?cable,?washing,?water?supply,?heating?and?ventilation,?sewage?treat-ment?

and?other?industries,?machinery?and?equipment?for:?Drawing?machines,?blenders,?cutting?machine,

winding?machinery,?compressors,?air?pumps,?grinders,?conveyors,?hoist,?centrifuges?and?various?speed?

control?machinery.

Wiring Diagram

Specification:
