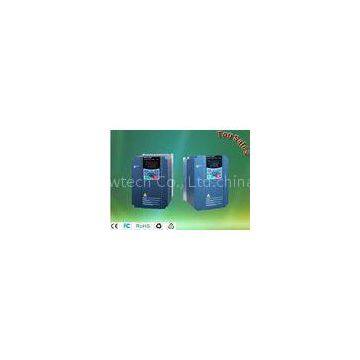

POWTECH PT200 4KW 380V 3 phase vector control frequency inverter

Powtech?Pt200?4kw?380v?3?Phase?Vector?Control?Frequency?Inverter?

PT200 004G-3B (4 kW, 9 А, 380 V)

Quick Detail:

Description:

1. Multiple protection mechanisms

2. Powerful phase short circuit protection

3. 0.3 subtle transient protection

4. IGBT module protection

5. Input current regulation

6. Resistance to external magnetic interference

7. Lighnting protection design

8. Instantaneous pressure discharged to ground

9. Independent power supply

10. Unique software algorithms

11. Board ground

12. Back panel ground

13. Grounding terminal

14. Double power supply design

15. Independent air duct design

16. Capacitance of the forced air cooling

17. Smart fan control

18. Allow 45℃ environment temperature

19. Three times thickened anti-corrosion coating

20. Wide voltage design

21. Automatic Voltage Regulation (AVR)

22. 0.1 second instantaneous braking

23. A variety of start and stop control mode

24. Multiple control modes

25. Multiple frequency source setting

26. Multi-speed operation

27. Current waveform

28. PWM waveform

29. Phase voltage waveform

30. Harmonic test parameters

31. PC monitoring software

32. Automatic test system

33. Control of motor speed control software

34. The keyboard control software

35. Rubycon electrolytic capacitor

36. TAMURA hall current sensor

37. EPCOS electrolytic capacitor

38. AVAGO Charge Coupled Device

39. Infineon IGBT insulated gate bipolar transistor

40. EPCOS absorption capacity

41. LEM hall current sensor

42. Fast acting fuse

43. One key shuttle high precision rotary encoders

44. English menu display

45. Intelligent cosntant pressure water supply on/off control

46. Motor parameters self-learning

47. Automatic torque boost

48. Automatic torque control

49. Smart setting for optional parameters (G/P in one set)

50. Carrier frequency adjustment

51. Automatic energy saving control

52. Textile swing frequency control

53. Instantaneous power lost speed tracking

54. Inching control

55. Terminal custom

56. Simple wiring

57. Common DC bus

58. Wave following current limiting

59. DC braking

60. PID control

61. V/F Separation Set

62. Virtual Terminal

63. Monitoring information display

64. Stopping delay
?

Unlock the mysteries of variable frequency drive(VFD/ Ac Motor Speed Controller)

Introduced by Mr Showyee Shu:

Glad to share with you for variable frequency drive(VFD) :

which?is also termed adjustable frequency drive, variable speed drive, AC drive, micro drive or inverter drive) is a type of adjustable speed drive used in electro-mechanical drive systems to control AC motor speed and torque by varying motor input frequenc
