16 ~ 48 Slots Induction Motor Stator Wire Winding Inserting Machine
- T/T L/C D/P D/A
- 7 days
You May Like
-
Induction Motor Stator Winding Middle Coil Forming Machine with hydraulic system
-
PLC Control Automatic Coil Forming Machine For Stator Winding final forming
-
Enter and Exit Station Stator Coil Middle Forming Machine high efficiency
-
Horizontal Stator Enamelled Copper Wire / Aluminum Wire Middle Forming Machine
-
Automatic Vacuum Cleaner Motor Test Equipment / Armature Testing Machine
-
Heater Motor Stator Testing Panel Equipment With industrial control computer
Product Details
| Brand Name | Nide | Place of Origin | China | |
| Model Number | QW1-250/300 |
Product Description
Certification:None

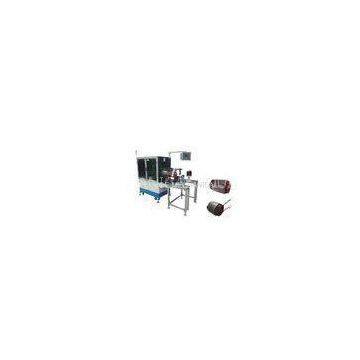

16 ~ 48 Slots Induction Motor Stator Wire Winding Inserting Machine
Quick Detail:
Description:
Horizontal Winding Inserting Machine is with horizontal frame design, controlled by industrial programmable PLC. It is used for winding and wedge automatically inserting. Horizontal Winding Inserting Machine adopts AC servo motor driving system, AC frequency conversion speed regualtion system, pneumatic system. It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically. Coil inserting speed can be set at different section. Wedge fedding mode can be set according to different motor.Horizontal Winding Inserting Machine is equipped with human-machine control interface, Horizontal Winding Inserting Machine has the function of status display, malfunction alarm, various parameters setting etc. It has the characteristic of widely application, high automation, easy operation and convenient tooling change.
Technical parameter:
|
Stator I.D |
110~210mm |
|
Stator O.D |
175~300mm |
|
Stator stack length |
≤250mm |
|
Slot number range |
16~48 slots |
|
Appropriate wire |
0.2~1.2mm |
|
Input |
380V/50Hz |
|
Power source |
380/50/60Hz4Kw |
|
Dimension |
1000*2000*2000mm |
|
Weight |
≈ 1850kg |
Competitive advantages:
Easy operation and convenient tooling change.?It can achieve wedge length setting, feeding, cutting, forming and inserting into stator together with coil automatically.?
