Product Details
| Brand Name | Renda | Place of Origin | China | |
| Model Number | QGF-1200 |
Product Description
Certification:CE|ISO

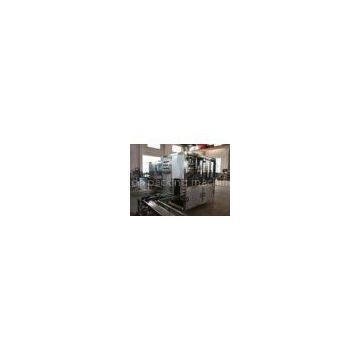

5 Gallon Pure Water Barrel Filling Machine 1200BPH with CE ISO Approvals
Quick Detail:
Driven Type: Electric???????????????????????
Voltage: 110/220/380V
Power: 8.5KW?????????????????????????????
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Renda????????????????????????
Dimension(L*W*H): 2560*2350*2750mm??? ??
Weight:9500kg????????????????????????????????
Certification: CE,ISO?? ????????????????????
Processing: bottle packing machine??????????
Suitable Bottle:5 gallon
Material: stainless steel?????????????????????
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Description:
This?5 gallon filling machinery?specially produces 5 gallons bottled drinking water,whose types(b/h)are:100 type,200type,300type,450 type,600type,900 type,1200type and 2000 type. 5 gallon filling machinery integrates bottle washer,filler andsealer into one unit,in order toachieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching areused in bottle washer,Washing solution can boused circularly.The 5 gallon filling machinery sealer can seal bottle caps automatically.This 5 gallon filling machinery equips with water spraying device tosterilize caps of bottlesin order to ensure those caps are aseptic and healthy,also this 5 gallon filling machinery can automatically carry out bottle feeding washing,sterilizing,filling capping,counting and products discharging.It is a new kind of barreled water auto-producting line,which 5 gallon filling machinery integrates mechanism,electricity and pneumatics technologies together. ?Applications:
The QGF series filling machine is specially designed for the 5 gallon barrel.
Specifications:
|
Model |
QGF-100 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
QGF-1200 |
QGF-2000 |
|
Filling heads |
1 |
2 |
3 |
4 |
8 |
12 |
16 |
|
Volume(L) |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
|
Barrel size(mm) |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
φ270×490 |
|
Capacity(B/n) |
100-120 |
200-240 |
300-400 |
600 |
900 |
1200 |
2000 |
|
Gas pressure(mpa) |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
Gas consumption |
0.37 |
0.6 |
0.6 |
1.2 |
2.2 |
3 |
4.5 |
|
Motor power(Kw) |
1.75 |
3.22 |
4.8 |
8.5 |
8.5 |
8.5 |
