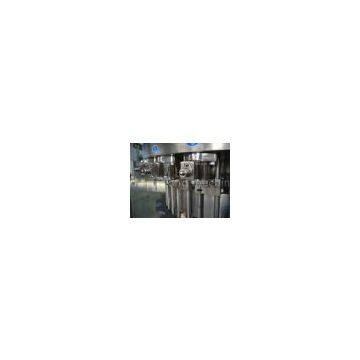

Bottle Packing Carbonated Drink Filling Machine , liquid filling Line in 220V 110V

Bottle Packing Carbonated Drink Filling Machine , liquid filling Line in 220V 110V

Quick Detail:

Driven Type: Electric?????????? ?????????????

Voltage: 110/220/380V

Power: 3.5KW?????????????????????????????

Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda????????????????????????

Dimension(L*W*H): 2360*1770*2400mm?????

Weight:3.6T????????????????????????????????

Certification: CE,ISO??????????????????????

Processing: bottle packing machine??????????

Suitable Bottle: 0.25-2L

Material: stainless steel?????????????????????

Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overse

Description:

1. This equipment is automatic washing filling capping three in one machine. It’s of many advantages, such as compact structure, perfect control system and easy to be operated. Advanced touch screen and PLC control system makes man-machine communication true.

2. Washing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

3. Filling part is mainly composed of filling barrel, filling valve (low temperature and isobar filling), filling pump, bottle hanging device / bottle pedestals, guide rail, elevating device, liquid indicator, pressure gauge, pressure regulator, etc.

4. Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.

5. Main electrical components are all imported from world famous brands to guarantee excellent performance of the whole machine.

Applications:

Applicable for: Cola, Carbonated beverage etc.

Applicable container: various PET bottles with different capacities and shapes

Production capacity: 3000BPH—5000BPH

Specifications:

Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles

--Precise control bottling fluid level, powerfully prevent air bubble

--Sanitary class circulating pipe assures the temperature when bottling

--Capping and clamping technology
