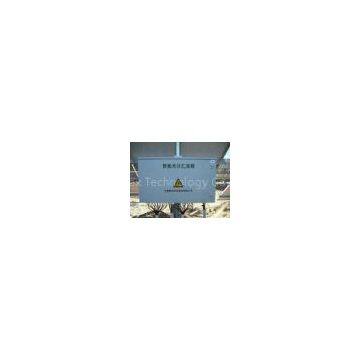

Smart Waterproof Array Junction Box 2 - 32 strings For PV Grid Generation System

Outdoor Waterproof Array Junction Box 2 - 32 strings For PV Grid Generation System

Outdoor use waterproof PV junction cabinets,Outdoor use solar junction boxes,Outdoor use solar panel combiner 4 strings

Quick Detail:

Outdoor use waterproof PV junction cabinets

The combiner box is a device that combines the output of multiple strings of PV modules for connection to the inverter. It is typically used in the larger commercial and utility scale PV power plants. The combiner box commonly houses the input over current protection fuse assemblies for several strings (from as few as 2 strings to as many as 32), as well as the combined bus of those inputs into a single main output.

The PV combiner box also house other components for the site, such as a DC disconnect, surge protective devices and string monitoring hardware.

Description:

Outdoor use waterproof PV junction cabinets

In a large photovoltaic (PV) grid generation system, it is generally to install a DC combining device between the PV module and inverter in order to reduce the connection between PV module and inverter, facilitate maintenance and improve reliability. Our intelligent photovoltaic combiner box with SPD series are especially designed to meet the requirement, which can provide a solution for PV power generation system matching with photovoltaic inverter. According to the input voltage of the inverter, a fixed number of similar PV modules can be connected to form a PV array by using PV array combiner box. Then different channels of PV arrays can be combined into the PV combiner box. Its output can be connected to inverter by way of circuit breakers with SPD protection.

Intelligent PV array combiner boxes with monitoring device

Key features:?

1. According to the function, it will have a standard combiner box (SAB) and an intelligent combiner box (SCB).

According to different working environment, it will have polycarbonate (PC) and steel made boxes .

2.We choose all materials strictly on quality first principle. All components comply with DIN and VDE standards, and all adhere to the highest quality standards.?
3.CE, TUV, CQC certified.?

4,Meet outdoor installation requirements, IP66 . With anti-UV, anti-acid, anti-alkali, moisture, mildew, rodents and so on functions.

5,All components meet rated voltage DC1000 V requirements.?

6.With fuses on Inputs, switches on outputs, and SPD in both poles.

7,Can monitor the current of each string, system voltage, status of circuit breaker and SPD. Can display and read the data on both local and background part. Can accurately identify the fault and its position

Applications:

Solar can be transformed into electricity that can be used directly or fed into the grid according to national policy. Longmax Technology is focused on developing and offering technology and products for sustainable solar energy development.

In the field of sustainable renewable photovoltaic energy, our core competencies products include:

Solar combiner boxes, AC/DC distribution cabinets/boxes, intelligent monitoring devices, portable AC/DC solar generators, multi-function power systems, environmental monitoring instruments, PV prevent reverse diodes and monitoring systems used in PV power plants.

Our history is full of firsts and our products are installed in a huge number of solar power plants all over China and the world. Till now, the total installed capacity of Longmax is over 2GW worldwide.

Our customers include entities and enterprises dedicated to the renewable energy field, solar power plants and agents/distributors around the world who are interested in the new PV industry.

?

Specifications:

To ensure body safety and reducing the danger. Longmax solar combiner has features as below:

Meet outdoor installation requirements, the degree of protection is IP54, has the function of avoiding UV, acid and alkali, moisture, mold and rat;

2-32 strings of solar arrays can be input at the same time, each channel with 12A,1000Vdc (can be replaced to other level);

Each positive, negative string under the fuse protection;

With special high voltage PV SPD, both positive and negative pole have the function of thunder and lightning; Use photovoltaic circuit breaker;

Technical Data
