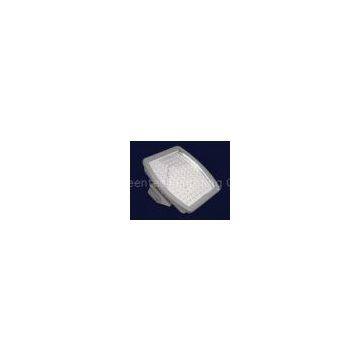

100W Natural White Explosion Proof Gas Station Canopy Lighting , LED Canopy Lights

Brand Name	S-Tech, Lightingtalk		Place of Origin	China
Model Number	J100W

Delivery Time:7~10 days
Certification:UL/CUL/CE/ROHS

100W Natural White explosion proof gas station canopy lighting , LED canopy lights

Quick Detail:

Model Number: J100W or J100W-RF( with reflector) Item Type: LED gas station light LED Light Source:? 96pcs Bridgelux Private mold Die Casting Aluminum housing +Tempered Glass+ Meanwell Power supply Power: 100W±5% Input Voltage: AC100-277V Lamp Luminous Efficiency: >90 lm/w CRI (Ra>): 75 Beam Angle: 120°x120° Color Temperature(CCT): 5700-6500K Working Temperature(℃): -40℃ to 50℃ Working Lifetime(Hour): 40000 Certification: UL/CUL/CE/ROHS Warranty: 5years Size: 300*300*185mm Anti-exploded IP Rating: IP68

Applications:

Widely used in the lighting of gas station, Wall back light and so on.

Tag:

Gas station light, LED gas station light; LED Wall Mounted light

* actual product may vary from picture show.

LENGTH :? 400mm

WIDTH :?? 400mm

HEIGHT :? 185mm

WEIGHT:? 11.5 KG

High quality Bridgelux 700Ma 45Mil Efficacy : up to 150lm @ 350Ma (per watt) Rated Life of 100,000+ hrs Operation temp: -30 oC to +40 oC No toxic chemicals/Rohs compliant 70%-80%? saving compare to HPS/MH 5 years warranty Highest Ingress Protection rating : IP68

Note	ITEM NO.	DESCRIPTION	TOTAL POWER	Reflector/ wide angle	NOMINAL LUMENS	DRIVE CURRENT	# OF LEDS	SYSTEM? EFFICACY
UL/CE Certify	J120	Replacing 400-500w HPS	120	Optional for both	10,800	350 mA	96	90 LM/W
CE Certify	J100	Replacing 300-400w HPS	100	Optional for both	9,300	300 mA	96	93 LM/W

* Total power consumption may vary due to installation location.

Perfection is the Goal

Material:?? Die Cast Aluminum Light Color option:? ???? Cool White

Warm White

Custom color

LENS:? Super Clear Tempered Glass Wide AC input:? 90-305 VAC (UL marking: 100-240VAC/277VAC) Power Factor: ~0.98 Total Harmonic Distortion: < 10% Surge protection: IEC/EN 61000-4-5 EMC test standard Easy installation – plug and play Wall Mount bracket CE: Recognition with CNAS ISO 14001: Recognition with IAF & CNAS ISO 9001: Recognition with IAF & CNAS??? UL Certify : ANSI/UL 1598 & ANSI/UL 8750
