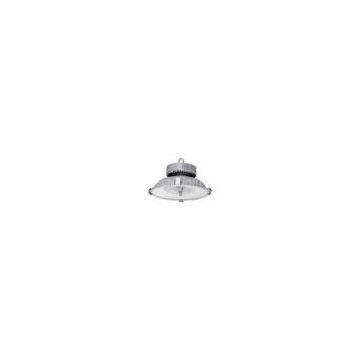

Waterproof High Power Induction High Bay Lights With Aluminum Housing 220V 100 Watt

Brand Name	S-Tech/Lightingtalk		Place of Origin	China
Model Number	HB228-120W

Delivery Time:10~20 days
Certification:CE, ROHS, C-tick, SAA

?Waterproof high power Induction High Bay Lights with Aluminum housing 220V 100 Watt

Quick Detail:

Model Number: HB228-100W Item Type: Induction High bay Light Lamp Body Material: Die casting Aluminum housing+ tempered glass Reflector: (two choice) White nano coating or Vacuum mirror film coating, light transmittance is >90% Naked ballast built in design for better heat dissipation Power: 100W±10% Power Factor: ≥95% Voltage: AC 165V~265V 50HZ Lamp Luminous Efficiency: >80lm/w IP Rating: IP65 Certification: CE, C-tick, RoHS, SAA Warranty: 5 years

Description:

Product: 100W Induction High bay Light IP65 Model Number: HB228-100W Lamp Body Material: High-Purity Die casting Aluminum housing with high temperature baking is corrosion-resistant and durable Tempered glass cover with heat-resistant silicone seal and high-strength aluminum hasp, luminousness can be reached 90%, the IP rating is IP65 Reflector: (two choice) White nano coating(HB228) or Vacuum mirror film coating(HB226) Naked ballast built in design for better heat dissipation. And easy assembly/installation Voltage: AC 165V~265V 50Hz Power: 100W±10% Power Factor: ≥95% Lamp Luminous Flux(lm): 8000Lm±10% Lamp Luminous Efficiency(lm/w): >80lm/W Color Temperature: Warm White(3000K), Natural White(4000K), Cool White(5000K-Normal), Cold White(6500K)? Working Temperature: -20℃~40℃ Storage Temp. : -40℃~50℃ Lifespan @25℃: 80,000hrs IP Rating: IP65 Certification: CE, RoHS, C-tick, SAA Warranty: 5 years N.W.(g): 5.7Kg

Applications:

Widely used in various sports venues, industrial and mining enterprises workshops, warehouse, airports, railway stations, gas stations, playgrounds, exhibition halls, supermarkets and other indoor public places

Specifications:

Rated Voltage (VAC/Hz)	AC165V~AC265V / 50Hz
Wattage (W)	100W
Color temp.	2700-6500K
CRI Standard color temp.	>75 5000K
Lumen(Lm)	8000Lm
Lifespan (hrs) @25°C	80,000hrs *
Ambient Temp. (°C)	-20°C~40°C
Storage Temp. (°C)	-40°C~50°C
N.W.(g)	5.7kg
Warranty	5 years
IP Rating	IP65

With glass cover:

With PC cover:

Dimension

???????????????????????????? ????????????????????Unit(mm)

Model	D	H	Remark
HB228-40W/60W	Φ358	277	14\" Tempered Glass Cover
339	14\" PC Cover
HB228-80W	Φ399	277	16\" Tempered Glass Cover
339	16\" PC Cover
HB228-120W/150W	Φ470	287	19\" Tempered Glass Cover
346	19\" PC Cover
HB228-200W	Φ506	292	20\" Tempered Glass Cover
358
