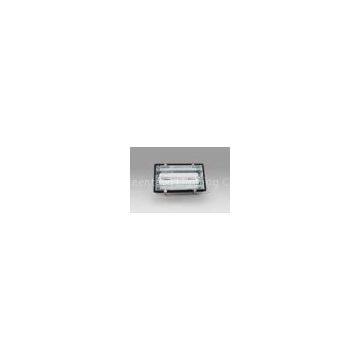

Energy Saving Waterproof Induction Tunnel Lighting With Natural White / Cool White 2700K - 6500K

Brand Name	S-Tech, Lightingtalk		Place of Origin	China
Model Number	SD038-300W

Delivery Time:10~20 days
Certification:CE|RoHS

Energy Saving waterproof Induction Tunnel Lighting with Natural White / Cool White 2700K - 6500K

Quick Detail:

Model Number: SD038-300W Item Type: Tunnel induction light Lamp Body Material: Die casting Aluminum housing+ tempered glass Reflector: (two choice) White Nano coating or Vacuum mirror film coating, light transmittance is >90% Naked ballast built in design for better heat dissipation Power: 300W±10% Power Factor: ≥95% Voltage: AC 165V~265V 50HZ Lamp Luminous Efficiency: >80lm/w IP Rating: IP66 Certification: CE, RoHS, Warranty: 5 years

Description:

Product: 300W Tunnel Induction light ?IP66 Model Number: SD038-300W Lamp Body Material: High-Purity Die casting Aluminum housing Tempered glass+ heat resistance silicone seal+hig-!strength aluminum hasp Reflector:White Nano coating or Vaccum mirror film coating choice,light transmittance is >90% Naked ballast built in design for better heat disspersion. separated electrical box:easy assembly/installation Voltage: AC 165V~265V 50Hz Power: 300W±10% Power Factor: ≥95% Lamp Luminous Flux(lm): 25500Lm±10% Lamp Luminous Efficiency(lm/w): >80lm/W Color Temperature: Warm White(3000K), Natural White(4000K), Cool White(5000K-Normal), Cold White(6500K)? Working Temperature: -20℃~40℃ Storage Temp. : -40℃~50℃ Lifespan @25℃: 80,000hrs IP Rating: IP66 Certification: CE, RoHS Warranty: 5 years N.W.(g): 9.3Kg

Applications:

For the railway stations,docks,squares,large billboards,construction sites and three-dimensional lighting of landscape buildings

Specifications:

Rated Voltage (VAC/Hz)	AC165V~AC265V / 50Hz
Wattage (W)	300W
Color temp.	2700-6500K
Standard color temp.	5000K
Lumen(Lm)	25500Lm
Lifespan (hrs) @25°C	80,000hrs *
Ambient Temp. (°C)	-20°C~40°C
Storage Temp. (°C)	-40°C~50°C
N.W.(g)	9.3kg
Warranty	5 years
IP Rating	IP66

Light Distribution Data:

Installtion:

Dimension

???????????????????????????????????????????????? Unit(mm)

Model	L	W	H
SD038-80W-A	530	335	150
SD038-80W-B	716	335	150

Packing:

Qty/CTN: 1pc/CTN

Net Weight: 9.3kg

Gross Weight: 10.0Kg

Inner Box: 725x360x142mm

Outside Carton: 800×410×230mm

Competitive Advantage:

1. Patented product, specially designed for lighting source of Tunnel induction light

2. High-Purity Die casting Aluminum housing with high temperature baking is corrosion-resistant and durable, perfect appearance.

3. Tempered glass cover with heat-resistant silicone seal and high-strength aluminum hasp, luminousness can be reached 90%, the IP rating is IP66

4. Reflector: (two choice) White Nano coating(SD038) or Vacuum mirror film coating(SD036), low glare, high light uniform distribution rate and greatly reduces the number of lamps. Reflectivity can be reached 95%

5. Naked ballast built in design for better heat dissipation. And easy assembly/ installation

6. Integrated die-casting of aluminum electrical box with high temperature baking is corrosion-resistant and durable.

7. Applied with our 80W-300
