P16 Low Power Consumption/ high resolution Outdoor Full Color Led Display for stadium advertisment
- 0 Meter / Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Public Information Outdoor Full Color P20 Led Display Screen Energy Saving
-
High Resolution Rental P16 Outdoor LED Display Screen For Stadium Advertising 1R1G1B
-
Public Information Outdoor Full Color Led Display Screen Energy Saving
-
P31.25 Outdoor Electronic Information Static Traffic Led Sign High Resolution
-
High Brightness Electronic Traffic Led Sign Screen For city road, street, airport, dock, station, hi
-
P16 Outdoor Full Color LED Display Screen, Stadium Flexible LED Video Wall For Advertising
Product Details
Brand Name | Xiwan | Place of Origin | China | |
Model Number | BVO-16 |
Product Description
Certification:CE,Rohs
Long Service Life 16mm Outdoor Full Color Led Display 3906 Pixel
Quick Detail:
Cabinet pixel : 4096 Module size(MM) : 256*256 Pixel combination : DIP 1R1G1B1W BVO-16 outdoor full color LED display/LED screen is suitable for commercial and advertising display with advantages of High resolution, less power consumption, high brightness and long lifetime.Description:
BVO series ultra low power outdoor LED display or LED screen are new products with XIWAN new technology. Xiwan have invested millions of dollars on this new technology. Dedicate to save energy cost for big LED display and improve image quality very effectively. We have now developed P10, P12, P16, P20 and P25, you can choose according to your own applications.
Qualified LED core from Epistars, Silan and other big brand.
Qualified LED driving from Meanwell
Applications:

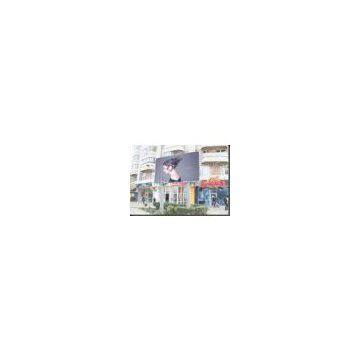

Advertising media, sports stadiums, airport station, business establishments, and public square
Specifications:
Item No. |
BVO-P16 |
Pixel Pitch(MM) |
P16 |
Module resolution |
16*16 |
Module size(MM) |
256*256 |
Pixel combination |
DIP 1R1G1B1W |
Pixel density |
3906 pixels/㎡ |
Driving way |
Static |
Cabinet size(MM) |
1024*1024 |
Cabinet resolution |
64*64 |
Cabinet pixel |
4096 |
The number of modules |
16 |
Cabinet type |
Fixed installation water proof iron box |
Cabinet weight (Kg) |
60 |
Average Power Consumption (W/㎡) |
≤150W/㎡ |
The maximum power(W/㎡) |
≤310W/㎡ |
Brightness (Cd/㎡) |
9800 |
Gray scale |
16bit(4096 levels) |
Refresh rate |
≥800 |
Brightness adjustment |
256 levels |
Frame frequency |
60HZ |
Input voltage |
110~220VAC |
Working temperature |
-20℃~+50℃ |
Work humidity |
10%-90%RH |
Best stadia |
≥12m |
The whole screen perspective |
H:135°;V:55° |
IP rating |
Front:IP65;Back:IP54 |
MTBF(hrs) |
1000 |
Life span(hrs) |
100000 |
Competitive Advantage:
5 advantages of XIWAN BVO series of low power consumption product:
●High resolution
Achieve higher resolution while using an equal number of the pixels. it based upon extensive knowledge of the human vision system and our unique pixel layouts and proprietary algorithm, in Xiwan displays, individual pixels are not restricted to use in one pixel group, but instead participate in multiple \"logical\" pixels in their surrounding vicinity, meaning they can create sharper images and displays.
●50% energy savings
Up to 50% reduction in energy consumption, in special circumstances, even more than 70%, it reduced the use
