Full Color Outdoor Advertising Led Display
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
Brand Name | Xiwan | Place of Origin | China | |
Model Number | BVO-20 |
Product Description
Certification:CE,Rohs
Scrolling Outdoor Full Color Led Display
Quick Detail:
Cabinet size(MM) : 960*960 Pixel combination :DIP 1R1G1B1W High resolution BVO-12 outdoor full color LED display/LED screen is suitable for commercial and advertising display with advantages of High resolution, less power consumption, high brightness and long lifetime.Description:
BVO series ultra low power outdoor LED display or LED screen are new products with XIWAN new technology. Xiwan have invested millions of dollars on this new technology. Dedicate to save energy cost for big LED display and improve image quality very effectively. We have now developed P10, P12, P16, P20 and P25, you can choose according to your own applications.
Qualified LED core from Epistars, Silan and other big brand.
Qualified LED driving from Meanwell
Applications:

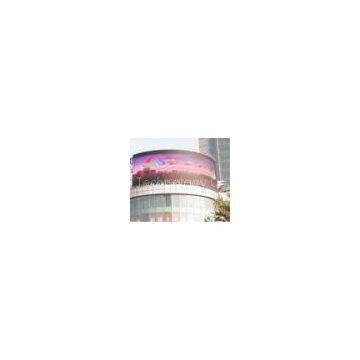

Advertising media, sports stadiums, airport station, business establishments, and public square
Specifications:
Item No. |
BVO-P25 |
Pixel Pitch(MM) |
P25 |
Module resolution |
8*8 |
Module size(MM) |
200*200 |
Pixel combination |
1R1G1B1W |
Pixel density |
1600 pixels/㎡ |
Driving way |
Static |
Cabinet size(MM) |
960*960 |
Cabinet resolution |
32*32 |
Cabinet pixel |
1024 |
The number of modules |
16 |
Cabinet type |
Fixed installation water proof iron box |
Cabinet weight (Kg) |
55 |
Average Power Consumption (W/㎡) |
≤100W/㎡ |
The maximum power(W/㎡) |
≤200W/㎡ |
Brightness (Cd/㎡) |
6500 |
Gray scale |
16bit(4096 levels) |
Refresh rate |
≥800 |
Brightness adjustment |
256 levels |
Frame frequency |
60HZ |
Input voltage |
110~220VAC |
Working temperature |
-20℃~+50℃ |
Work humidity |
10%-90%RH |
Best stadia |
≥12m |
The whole screen perspective |
H:135°;V:55° |
IP rating |
Front:IP65;Back:IP54 |
MTBF(hrs) |
1000 |
Life span(hrs) |
100000 |
Competitive Advantage:
5 advantages of XIWAN BVO series of low power consumption product:
●High resolution
Achieve higher resolution while using an equal number of the pixels. it based upon extensive knowledge of the human vision system and our unique pixel layouts and proprietary algorithm, in Xiwan displays, individual pixels are not restricted to use in one pixel group, but instead participate in multiple \"logical\" pixels in their surrounding vicinity, meaning they can create sharper images and displays.
● Wide color gamut
Xiwan technology is bio-mimetic; it optimizes the match of display technology to the biological mechanisms of human vision.
●50% energy s
