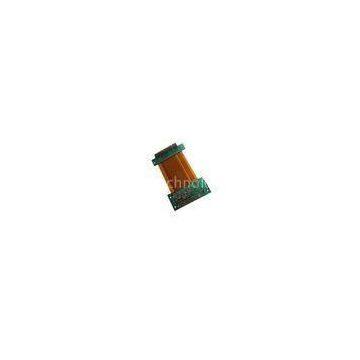

FR4 & PI rigid flexible pcb board 1.6mm Thickness Printed Circuit Board

FR4 & PI rigid flexible pcb board 1.6mm Thickness Printed Circuit Board ? Specifications Manufacture Rigid Flexi pcb board
Efficient Quotation,Strict Production,Reliable Quality
Approval: UL,ISO9001
Fast Delivery

Your Best Choice for Flex PCB and Rigid-Flex PCB Manufacturing & Assembly

Manufacture Rigid Flexi pcb board

1. Material Combination Polyimide & FR4

2. PCB have solid Rigid Areas and Flex areas with reduced Layer Count

3. Improves design freedom

4. Used in Automotive, Camera systems back & Front, Rain Sensors, Sensors.

ADVANTAGES:

We provide small and medium-volume Rigid-Flex PCB production, can make up to 10 layers Rigid-Flex Circuit Boards. Rigid-Flex PCB line width / spacing can be achieved minimum 3mil, we also provide Rigid-Flex Circuit Boards with HDI, Impedance Control.

TECHNICAL DATA:

Capabilities

Standard Production

Advanced Production

Layer Count / Technology

2 layer - 10 Layer

2 layer - 12 Layer

PCB Thickness Range

75μm - 1600μm

50μm - 2000μm

Materials

Polyimide / FR4

Polyimide / FR4

Thinnest Core

50μm without adhesive

25μm without adhesive

Copper thickness

9μm / 12μm / 18μm / 35μm

9μm / 12μm / 18μm / 35μm

Copper Plating Holes

20μm (25μm)

13μm / 20μm / 25μm

Min. Line / Spacing

125μm / 125μm

65μm / 65μm ( LDI )

Soldermask Registration

100μm (Photoimageable)

50μm (Photoimageable)

Min. Soldermask Dam

100μm

65μm

Soldermask Color

amber (green)

amber (green)

Cover Layer Polyimide

laser cutting / punching / drilled

laser cutting / punching / drilled

Production Panel

609,6 mm x 457,2 mm
250 mm x (250 - 410 mm)

609,6 mm x 457,2 mm
250 mm x (250 - 410 mm)

Min. Annular Ring

150μm

150μm

smallest drill

0,28 mm

0,2 mm

smalles Routing bit

0,8 mm

0,8 mm

Surfaces

OSP / Immersion Tin
Immersion Ni/Au
Plated Ni/Au

OSP/ Immersion Tin
Immersion Ni/Au
Plated Ni/Au

ID print

White

White

Adhesive Tape

Yes

Yes
