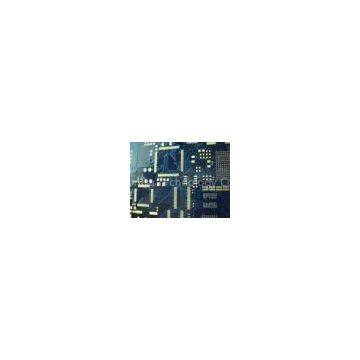

HASL chemical gold CEM-1 , FR-1 , FR4 Double-Sided Rigid PCB Board 1OZ , 0.5 to 3.0 oz

HASL chemical gold CEM-1 , FR-1 , FR4 Double-Sided Rigid PCB Board 1OZ , 0.5 to 3.0 oz ? Specifications rigid pcb board
Electronic testing circuit board or PCBA
Fast delivery,anti-staticpackage
RoHS Directive-compliant,lead-free

rigid pcb board

o?Technical?requirement:?

§?Professional?surface-mounting?and?through-hole?soldering?technology?

§?Various?sizes?like?1206,?0805,?0603?components?SMT?technology?

§?ICT?(In?Circuit?Test),?FCT?(Functional?Circuit?Test)?technology?

§?PCB?assembly?with?UL,?CE,?FCC,?RoHS?approval?

§?Nitrogen?gas?reflow?soldering?technology?for?SMT?

§?High?standard?SMT?and?solder?assembly?line?

§?High?density?interconnected?board?placement?technology?capacity?

o?Quote?requirement:?

§?Gerber?file?and?Bom?list?

§?Clear?pics?of?pcba?or?pcba?sample?for?us?

§?Test?method?for?PCBA?

o?PCB?and?PCBA?specification:?

§?Layer:?1?to?28?layers?

§?Material:?FR-4,?CEM-1,?CEM-3,?Hight?TG,?FR4?halogen?free,?FR-1,?FR-2?

§?Max.?finished?thickness:?0.4?to?7.0mm?(0.016?to?2.75”)?

§?Max.?finished?board?side:?500?x?500mm?(20?x?20”)?

§?Min.?drilled?hole?size:?0.25mm?(10mil)?

§?Min.?line?width:?0.13mm?(5mil)?

§?Min.?line?spacing:?0.10mm?(5mil)?

§?Surface?finish/treatment:?HALS/HALS?lead?free,?chemical?tin,?chemical?gold,?immersion?gold,?plating?gold?

§?Copper?thickness:?0.5?to?3.0?oz?

§?Solder?mask?color:?green/black/white/red/blue?

§?Inner?packing:?plastic?bag?

§?Outer?packing:?standard?carton?packing?

§?Hole?tolerance:?PTH:?±0.076,?NTPH:?±0.05?

§?Certificate:?UL,?ISO?9001,?ISO?14001,?RoHS?

§?Profiling?punching:?routing,?V-cut,?beveling?

§?Providing?OEM?service?to?all?sorts?of?printed?circuit?board?assembly?
