Double Side FR-4 Glass Epoxy laminate Rigid PCB board with OSP , Immersion silver

FOB Price

Negotiable / Set

1 Set(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

WonDa

Place of Origin

China

Product Description

Delivery Time:5-15 days
Certification:CE, ROHS, UL
Double Side FR-4 Glass Epoxy laminate Rigid PCB board with OSP , Immersion silver ? Quick Details

Place of Origin:	China (Mainland)	Brand Name:	OEM	Model Number:	OEM-09
Base Material:	FR-4 Glass Epoxy laminate,ALuminium Based (Others, by special order)	Copper Thickness:	0.5OZ-6OZ	Board Thickness:	0.1mm-3.5mm
Min. Hole Size:	0.3mm	Min. Line Width:	0.15mm	Min. Line Spacing:	0.15mm
Surface Finishing:	HAL, LHAL, Gold plate, OSP, Immersion silver	Soldmask:	Green, Red, Blue, Black, White, Yellow	Product Range:	2- 24 layers, HDI;Aluminium Based PCBs

Specifications

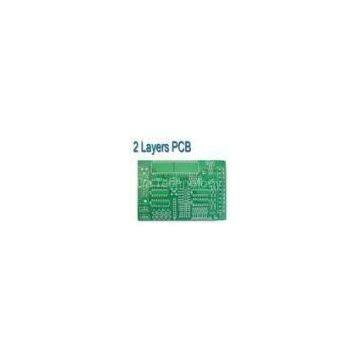

Double Side Rigid PCB
1 Good quality with competitive price
2 100% E-testing
3 Certificate:UL,RoHS
?

Specification:

Processing Capability Of Rigid PCB:
NO.	ITEM	Technique Data
1	Product Range	1- 24 layers, HDI;Aluminium Based PCBs
2	Base Material	FR-4 Glass Epoxy laminate,ALuminium Based (Others, by special order)
3	Major Laminate	King Board (KB-6150/60), ShengYi(S1141, S1170), Rogers,Teflon
4	Board Thickness	0.1mm-3.5mm
5	Thickness of copper foil for the basis materials	18um(1/2OZ),36um(1OZ),72um(2OZ)
6	The max board size	610*711mm(24\"x28\")
7	Surface Finish Treatment	Electroless nickel Immersion gold(Electroless Ni/Au),Organic Solderability Preservatives (OSP or Entek), Hot Air Leveling (=HAL-Tin/Lead),<BR>Hot Air Leveling (Lead- Free, RoHS), Carbon Ink, Peelable Mask. Gold Fingers (30μ\"),Immersion Silver (3~10u\"); Immersion Tin (0.6~1.2um)
8	Via Holes	Copper PTH / Blind Via / Buried Via/ HDI 2+N+2 with IVH
9	Min line width/spacing	0.127mm width/spacing(gild board),0.15mm width/spacing(tin-sprayed board)
10	Min. Board Thickness	0.2mm (2 layers)/0.4mm(4layers)/0.9mm(8 layers)/1.2mm(10 layers)/1.3mm (12 layers)/1.5mm (14 layers)/1.7mm (16 layers) /1.8mm/2.0mm (18 layers)/2.2mm (20 layers)/2.4mm( 22 layers)/2.6mm(24 layers)
11	Copper Foil Thickness	18um/35um/70um~245um(outerlayer:0.5oz~7oz)18um/35um/70um~210um(innerlayers:0.5oz~6oz)
12	Coating thickness	1.Gild thickness:0.025um-0.075um 2.Turmeric thickness:0.025um-0.15um 3.Hole wall coating thickness for finished products:18-25um 4.Thickness for hard gold gild?? the golden finger:0.05um 0.075um 0.100um 0.125um 0.15um
13	Solder resist	1.Categories:sensitization oil includes TaiYo ink PSR-2000,Chuang Yu ink LSM-3000N,and Hongkong XianDa ink ST-500;Thermosel oil include HongKong Xian da ink ST-300,etc 2.Colour:green,white,black,yellow,red and blue.
14	Outline processing categories and tolerance Punch	±0.10mm,computer gong:±0.15mm,V-CUT:±0.2mm,Golden finger faceoff:30°45° 60°
15	Tolerance	1.Linear diameter:±0.20% 2.Aperture for gilt-through finished products:±0.1mm 3.Aperture for NPTH finished products:±0.05mm 4.Board thickness:±0.075mm for boards of 0.4-0.6mm,±0.o9mm for boards of 0.6-0.1mm, 0.09mm for boards of 0.6-0.1mm,±0.13mm for boards of 1.2-1.6mm,±0.19mm for boards of 1.6-2.5mm
16	Degree of curvature for board warp	0.5-0.7%
17	Anti-peeling intensity for the boards	1.44/N/mm
18	Board dielectric constant	Normal 4.6-5.1 Special 2.55-11.0
19
