Customized 100T Automatic Self-Align Welding Turning Rolls , Rotator

FOB Price

Negotiable / Square Meter

1 Square Meter(Min.Order)

Supply Ability 0 Square Meter / Square Meters per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	H-WELDING		Place of Origin	China
Model Number	HGZ-100

Product Description

Delivery Time:30 days
Certification:Certification of original

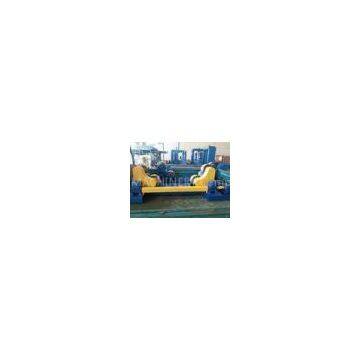

Customized 100T Automatic Self-Align Welding Turning Rolls , Rotator

Quick Detail:

The self- align/adjusting rotator is suitable for circular pipe/tank/vessel welding; The distance between wheels can be adjustable by it self. There are several specifications for customer choice; we also can special design according to customer’s requirements.

Description:

This series welding rotator has the types of self-aligned, conventional which are suitable for welding, polishing, assembly for pipe/tank/vessel longitudinal and transverse seam welding.??

Welding rotator can be auto adjusted according to the size and weight of cylinder, VFD rotary speed control, improving the reliability of operation.

Our company also can customize welding rotator in all varieties according to client\'s requirements.

Applications:

It used in many industries such as pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.

Specifications:

Type	Max loading(kg)	Range of suitable work piece(mm)	Dia and width of the wheel(mm)	roller linear velocity(m/h)	Power of motor(kw)	Way of setting
Rubber roller	Metal rollers
HGZ-5	5000	Φ250-2300	Φ250×100	2×Φ240×20	6-60	0.75	Variable frequency control?
HGZ-10	10000	Φ320-2800	Φ300×120	2×Φ290×25	6-60	1.1
HGZ-20	20000	Φ500-3500	Φ350×120	2×Φ340×30	6-60	1.5
HGZ-40	40000	Φ600-4200	Φ400×120	2×Φ390×40	6-60	3
HGZ-60	60000	Φ750-4800	Φ450×120	2×Φ440×50	6-60	4
HGZ-80	80000	Φ850-5000	Φ500×120	2×Φ490×60	6-60	4
HGZ-100	100000	Φ1000-5500	Φ500×120	2×Φ490×70	6-60	5.5
HGZ-150	150000	Φ1000-6500	according to customer requirement	6-60	2×3

Drawing:

Competitive advantage:

1. Main electric elements are Siemens/Schneider.
