Lead Screw Adjustable Welding Turning Rolls 5T For Tank / Pipe Welding

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	H-WELDING		Place of Origin	China
Model Number	CHGK-5

Product Description

Delivery Time:30 days
Certification:Certification of original

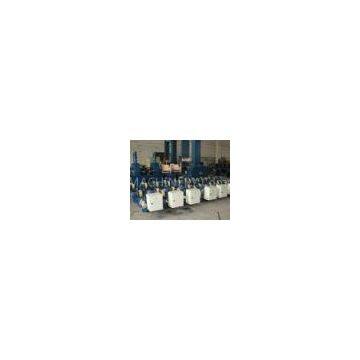

Lead Screw Adjustable Welding Turning Rolls 5T For Tank / Pipe Welding

Quick Detail:

The lead screw adjusting rotator is suitable for circular pipe/tank/vessel welding; The distance between wheels can be adjustable by lead screw. There are several specifications for customer choice; we also can special design according to customer’s requirements.

Description:

The distance between two rollers can be adjustable by manual control of lead screw, to accommodate work-piece of variable diameters. The equipment features in good adaptation, smooth revolve, VFD adjustable revolve speed and displaying in linear speed, which is suitable for welding, polishing, assembly for pipe/tank/vessel longitudinal and transverse seam welding.??

Our company also can customize welding rotator in all varieties according to client\'s requirements.

Applications:

It used in many industries such as pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.

Specifications:

Type	Max loading (kg)	Range of suitable work piece(mm)	Dia. and width of the wheel(mm)	roller linear velocity(m/h)	Power of motor(kw)	Adjustable mode for space	Way of setting
Rubber rollers	Metal rollers
HGK-2	2000	Φ200-1200	Φ200×100	2×Φ190×16	6-60	2×0.18	Manual screw adjustment or bolt shift	AC converter stepless speed adjust
HGK-5	5000	Φ250-2300	Φ250×100	2×Φ240×20	6-60	2×0.37
HGK-10	10000	Φ300-2800	Φ300×120	2×Φ290×25	6-60	2×0.55
HGK-20	20000	Φ500-3500	Φ350×120	2×Φ340×35	6-60	2×1.1
HGK-40	40000	Φ600-4200	Φ400×120	2×Φ390×45	6-60	2×1.5
HGK-60	60000	Φ750-4800	Φ450×120	2×Φ440×60	6-60	2×2.2	Bolt shift
HGK-80	80000	Φ850-5000	Φ500×120	2×Φ490×70	6-60	2×3
HGK-100	100000	Φ1000-5500	Φ500×120	2×Φ490×100	6-60	2×4
HGK-150	150000	Φ1100-
