Spring test probes Taiwan PT038

Springcontact probes PT038

Technicalspecifications ( recommended)

Minimum center: 0.76mm (30 mil)

Current rating:0.5 amps, continuous

Contactresistance: 150 milliohms

Mounting holessize: Ф0.6mm (74＃)/ 0.55mm(75＃)

Rated stroke: 1.0mm (0.0393”)

Spring force: 23g( 0.8oz)/11g(0.4oz)

Materials

Receptacle: brass,gold plated

Contact barrel:phosphor bronze, gold plated

Spring: musicwire, gold plated

Plunger: highcarbon steel( standard) or full-hard beryllium copper( available), gold platedover nickel

Test probes worksas electrical interfaces between the test equipment and the circuit board undertest.

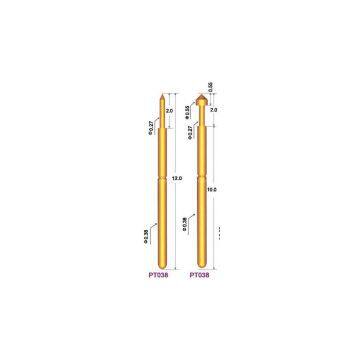

The constructionof PT038 :

The plunger ismade of high carbon steel or full-hard beryllium copper plated with gold to eliminatesurface oxides and to lower electrical resistance.

Various probe tipstyles are adopted to suit any test requirement according to differentapplications.

Spring is constructedof music wire, plated with gold which prevents corrosion.

The barrel is madeof phosphor bronze, plated with gold. The interior of the barrel makes goodelectrical contact with the plunger and spring whereas the exterior of thebarrel makes good electrical contact with the receptacle.

The receptacle ismade of brass plated with gold. Brass has features of high strength andhardness as well as resistance to chemical corrosion.

HOW TO eliminatecontact problems caused by dirty probes

PreventiveMaintenance:

Environment – reduceairborne contamination such as dust, clothing fibers or particles from an adjacentwave-solder machine

PCB –keep printedcircuit boards as clean as possible

Dust Covers – putdust covers over idle fixtures

Air Filters –fixingan air filter in the release port

ProbeCleaning:

Gently brushingthe probe tips with a small brush with nylon or natural fiber bristles

Spring contactprobeTaiwanseries PT038 is among our conventional products and can be applied toelectronic products. If you are interested, please feel free to contact me orbrowse our website ()for any other models. Thank you very much!
