spring contact probes Centalic series PS160-EC

Springcontact probes Centalic Series PS160-EC

Technicalspecifications (recommended)

Minimum center: 2.54 mm (100 mil)

Current rating: 3amps, continuous

Contactresistance: 50 milliohms

Mounting holessize: Ф1.75mm

Rated stroke: 1.78 mm

Spring force: 85g (3 oz) / 156 g( 5.5 oz)

Connections: styleCR: crimp    style SC: solder cup    style WW: wire wrapped

Materials

Receptacle: brass,gold plated

Contact barrel:brass, gold plated

Spring: musicwire, gold plated

Plunger: highcarbon steel (standard) or full-hard beryllium copper (available), gold platedover nickel

Test probes worksas electrical interfaces between the test equipment and the circuit board undertest.

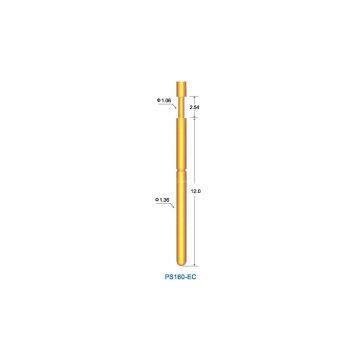

The constructionof  PS160-EC:

The plunger ismade of high carbon steel or full-hard beryllium copper plated with gold to eliminatesurface oxides and to lower electrical resistance.

Various probe tipstyles are adopted to suit any test requirement according to differentapplications.

Spring is constructedof music wire, plated with gold which prevents corrosion.

The barrel is madeof brass, plated with gold. The interior of the barrel makes good electricalcontact with the plunger and spring whereas the exterior of the barrel makesgood electrical contact with the receptacle.

The receptacle ismade of brass plated with gold. Brass has features of high strength andhardness as well as resistance to chemical corrosion.

HOW TO eliminatecontact problems caused by dirty probes

PreventiveMaintenance:

Environment – reduceairborne contamination such as dust, clothing fibers or particles from anadjacent wave-solder machine

PCB –keep printedcircuit boards as clean as possible

Dust Covers – putdust covers over idle fixtures

Air Filters –fixingan air filter in the release port

Probe Cleaning:

Gently brushingthe probe tips with a small brush with nylon or natural fiber bristles

Spring contactprobes Centalic Series PS160-EC are applied to electronic products. Apart fromthis model, our factory also provides others of high quality at competitiveprice. With over 30 years’ manufacturing experience, we assure you of ourquality and quick delivery. If you have any questions, please feel free tocontact me or browse our website ().Thank you!
