spring contact probe Taiwan series PTLL1
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | PTLL1 |
Product Description

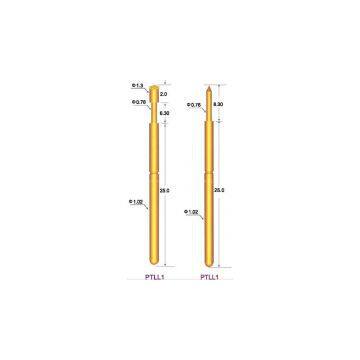

Springcontact probeTaiwanseries PTLL1
Technicalspecifications (recommended)
Minimum center: 1.91 mm (75 mil)
Current rating: 3amps, continuous
Contactresistance: 50 milliohms
Mounting holessize: Ф1.35mm
Rated stroke: 4.2 mm
Spring force: 170 g (6 oz)
Connections: styleCR: crimp style WW: wire wrapped
Materials
Receptacle: brass,gold plated
Contact barrel:brass, gold plated
Spring: stainlesssteel wire or music wire, gold plated
Plunger: highcarbon steel (standard) or full-hard beryllium copper (available), gold platedover nickel
Test probes worksas electrical interfaces between the test equipment and the circuit board undertest.
The constructionof PTLL1:
The plunger ismade of high carbon steel or full-hard beryllium copper plated with gold to eliminatesurface oxides and to lower electrical resistance.
Various probe tipstyles are adopted to suit any test requirement according to differentapplications.
Spring is constructedof stainless steel wire or music wire, plated with gold which preventscorrosion.
The barrel is madeof brass, plated with gold. The interior of the barrel makes good electricalcontact with the plunger and spring whereas the exterior of the barrel makesgood electrical contact with the receptacle.
The receptacle ismade of brass plated with gold. Brass has features of high strength andhardness as well as resistance to chemical corrosion.
HOW TO eliminatecontact problems caused by dirty probes
PreventiveMaintenance:
Environment – reduceairborne contamination such as dust, clothing fibers or particles from anadjacent wave-solder machine
PCB –keep printedcircuit boards as clean as possible
Dust Covers – putdust covers over idle fixtures
Air Filters –fixingan air filter in the release port
Probe Cleaning:
Gently brushingthe probe tips with a small brush with nylon or natural fiber bristles
PTLL1 is a verypopular model in spring contact probes. Apart from it, our factory alsomanufactures a large number of other models. If you are interested, please feelfree to contact me or browse our website ()for detailed specifications. Thanks a lot!
Contact person:Stella
Tel:86-755-27494785-229
Email: probe321@163.com
Skype:test123probe
