spring contact probes Centalic series P75

Springcontact probes Centalic Series P75

Technicalspecifications (recommended)

Minimum center: 1.91 mm (75mil)

Current rating: 3amps, continuous

Contactresistance: 50 milliohms

Mounting holessize: Ф1.35mm

Rated stroke: 2 mm/ 1.3 mm

Spring force: 113g (4 oz)

Connections: styleCR: crimp    style SC: solder cup    style WW: wire wrapped

Materials

Receptacle: brass,gold plated

Contact barrel:brass, gold plated

Spring: stainlesssteel wire or music wire, gold plated

Plunger: highcarbon steel (standard) or full-hard beryllium copper (available), gold platedover nickel

Test probes worksas electrical interfaces between the test equipment and the circuit board undertest.

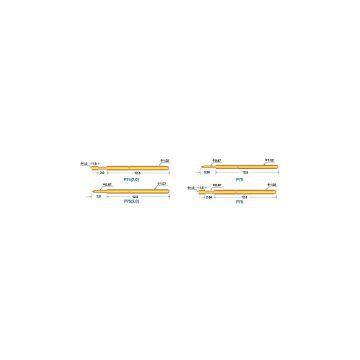

The constructionof P75:

The plunger ismade of high carbon steel or full-hard beryllium copper plated with gold to eliminatesurface oxides and to lower electrical resistance.

Various probe tipstyles are adopted to suit any test requirement according to differentapplications.

Spring is constructedof stainless steel wire or music wire, plated with gold which preventscorrosion.

The barrel is madeof brass, plated with gold. The interior of the barrel makes good electricalcontact with the plunger and spring whereas the exterior of the barrel makesgood electrical contact with the receptacle.

The receptacle ismade of brass plated with gold. Brass has features of high strength andhardness as well as resistance to chemical corrosion.

HOW TO eliminatecontact problems caused by dirty probes

PreventiveMaintenance:

Environment – reduceairborne contamination such as dust, clothing fibers or particles from anadjacent wave-solder machine

PCB –keep printedcircuit boards as clean as possible

Dust Covers – putdust covers over idle fixtures

Air Filters –fixingan air filter in the release port

ProbeCleaning:

Gently brushingthe probe tips with a small brush with nylon or natural fiber bristles

Spring contactprobes Centalic Series P75 are applied to electronic products. Apart from thismodel, our factory also provides others of high quality at competitive price.With over 30 years’ manufacturing experience, we assure you of our quality andquick delivery. If you have any questions, please feel free to contact me orbrowse our website ().Thank you!
