Semi-conductor probes SCP038(63) -BU—88-G

Semi-conductorprobes SCP038(63) -BU-88-G

Pitch 0.50mm

MechanicalSpecification

Full Stroke: 2.00mm

Rated Stroke: 0.80mm

Spring Force:25gf@ Load 0.80mm

ElectricalSpecification

Current Rating: 0.5A, continuous

Bandwidth:2.3GHz@-1dB

PropagationDelay:44ps

Materials

Barrel: PhosphorBronze, Gold Plated.

Plunger: Full-HardBeryllium Copper. Gold Plated.

Spring: MusicWire, Gold Plated.

Test probes works as electrical interfaces between thetest equipment and the circuit board under test. Semi-conductor probes aremainly used for testing frequency of communications devices such as mobilephones, interphones, computers, etc.

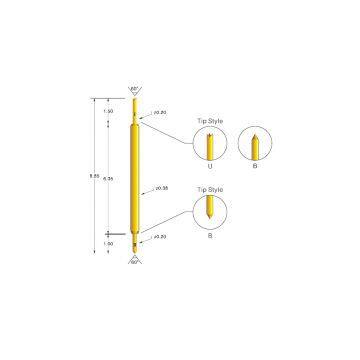

The construction of SCP038(63) -BU-88-G:

The plunger is made of full-hard beryllium copper, platedwith gold to eliminate surface oxides and to lower electrical resistance

Various probe tip styles are adopted to suit any testrequirement according to different applications.

Spring is constructed of music wire, plated with goldwhich prevents corrosion.

The barrel is made of phosphor bronze, plated withgold.

HOW TO eliminate contact problems caused by dirtyprobes

Preventive Maintenance:

Environment – reduce airborne contamination such asdust, clothing fibers or particles from an adjacent wave-solder machine

PCB –keep printed circuit boards as clean as possible

Dust Covers – put dust covers over idle fixtures

Air Filters –fixing an air filter in the releaseport

Probe Cleaning:

Gently brushing the probe tips with a small brush withnylon or natural fiber bristles

Semi-conductorprobes SCP038(63) - BU—88-G are always in great demand. Apart from this model,we also provide other products of small diameters at competitive prices. If youare interested, please feel free to browse our website () orcontact me any time. Thanks a lot!
