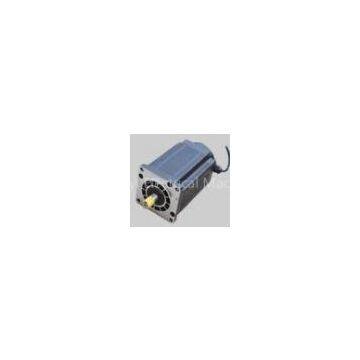

Custom 5A 220V Stepper Motor, 110BYG250 and nema 42 high speed stepper motor with 18kg.cm Holding To
- T/T L/C D/P D/A
- 7 days
You May Like
-
Nema 42 and three Phase 3A 220V Stepper Motor, 1.2 110mm 6 wire and 110BYG350 steper motor with 8kg
-
3 Phase and 3 lead 220V 220V Stepper Motor, 1.2 110mm nema 42 and 110BYG350 integrated driver stepp
-
1.2 degree nema 42 and high speed 220V Stepper Motor, 6 wire and 110BYG350 3 Phase hybrid step motor
-
Custom 1.2 110mm 3 wire / 6 wire and 110V / 220V Stepper Motor, 110BYG350 3 Phase and nema 42 torqu
-
86MM 8 Wire and 4.5A 60V Industrial Stepper Motor, nema 34 and 86BYG450 4 Phase hybrid stepping moto
-
8 Wire and 4.5A 60V Industrial Stepper Motor, 86MM nema 34 and 86BYG450 4 Phase hybrid stepping moto
Product Details
| Brand Name | CW | Place of Origin | China | |
| Model Number | 110BYG350-250 |
Product Description
Certification:CE, ISO9000, SGS
Custom 5A 220V Stepper Motor, 110BYG250 and nema 42 high speed stepper motor with 18kg.cm Holding Torque
Genaral Specification
Step Angle ------------------- 1.8°±5°
Temperature Rise ------------- 80℃max
Ambient Temperature -------- -20℃~+50℃
Insulation Resistance--------- 100 MΩ Min. , 500VDC
Dielectric Strength: ------------ 500VAC for 1minute
Detailed Product Technical Data Sheet
|
Model |
Step Angle (°) |
Motor Length (mm) |
Rated Current? (A) |
Phase Resistance (Ω) |
Phase Inductane (mH) |
Holding Torque (N.m) |
Lead Wire (No.) |
|
110BYG350-113 |
0.6/1.2 |
113 |
3 |
3.15 |
17 |
8 |
3/6 |
|
110BYG350-130 |
0.6/1.2 |
130 |
3 |
4.2 |
22.6 |
13 |
3/6 |
|
110BYG350-183 |
0.6/1.2 |
183 |
5 |
2.14 |
17.5 |
16 |
3/6 |
|
110BYG350-220 |
0.6/1.2 |
220 |
5 |
2.4 |
24.4 |
20 |
3/6 |
|
110BYG350-250 |
0.6/1.2 |
250 |
5 |
2.9 |
27 |
25 |
3/6 |
Detailed Product Structure Chart
?Competitive Advantage
The above are just representative products,the derivative can made according to customs demands.
