Product Details
| Brand Name | CW | Place of Origin | China | |
| Model Number | 130BYG350-250 |
Product Description
Certification:CE, ISO9000, SGS

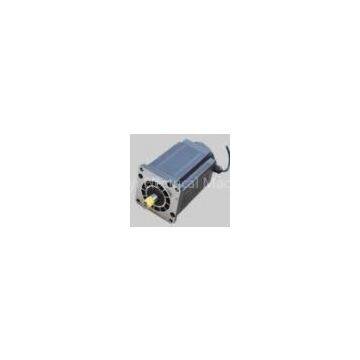

110V / 220V and 3 wire / 6 wire Integrated Stepper Motor, 1.8° 130mm 130BYG350 3 Phase hybrid stepping motor
Description
Genaral Specification
Step Angle ------------------- 1.2°±5°
Temperature Rise ------------- 80℃max
Ambient Temperature -------- -20℃~+50℃
Insulation Resistance--------- 100 MΩ Min. , 500VDC
Dielectric Strength: ------------ 500VAC for 1minute
Detailed Product Technical Data Sheet
|
Model |
Step Angle (°) |
Motor Length (mm) |
Rated Current? (A) |
Phase Resistance (Ω) |
Phase Inductane (mH) |
Holding Torque (N.m) |
Lead Wire (No.) |
|
130BYG350-200 |
0.6/1.2 |
200 |
5 |
2.3 |
28 |
30 |
3/6 |
|
130BYG350-220 |
0.6/1.2 |
130 |
6 |
2.2 |
26 |
36 |
3/6 |
|
130BYG350-250 |
0.6/1.2 |
183 |
6 |
2.65 |
32 |
50 |
3/6 |
Detailed Product Structure Chart
?Competitive Advantage
The above are just representative products,the derivative can made according to customs demands.
