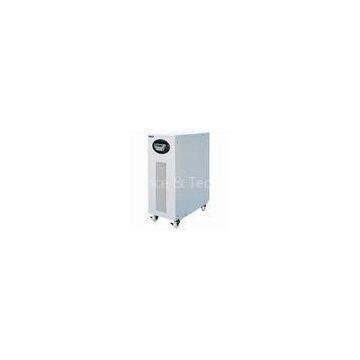

IEC6 ISP IDC EA9960 EA9980 EA99100 online high frequency UPS with LCD, LED

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Mengda

Place of Origin

China

Product Description

Delivery Time:3-10 days
Certification:CE, QS, CCC

IEC6 ISP? IDC EA9960? EA9980? EA99100 online high frequency UPS with LCD, LED

Idea Application
ISP (Internet Service Provider ), IDC(Internet Data Center), network control center/computer centre,bank
?

Technical Specification?

Model	EA9930	EA9940	EA9950	EA9960	EA9980	EA99100	EA99120	EA99160	EA99200
Capacity	30KVA	40KVA	50KVA	60KVA	80KVA	100KVA	120KVA	160KVA	200KVA
Rating	24KW	32KW	40KW	48KW	64KW	80KW	96KW	128KW	160KW
Main input	voltage	380V/400V/415V ( Linear voltage )
Phase	Three phase four wire
P. F.	>0.99
Harmonic current (THDI)	<3%
Voltage range	+20%~-40%
Linear rating drop Between -20%~-40% and 100%~50%
Frequency range	40~70Hz
Bypass input	Input voltage	380/400/415V ( linear voltage )
Input voltage range	+20%~-50%
Input Phase	Three phase four wire
Frequency range	40~70Hz
Output	Stable voltage precision(balanceable load)	±0.5%
Dynamic voltage in instantaneous change	±2% ( 0~100% load change )
Voltage aberration(linear load)	THD<0.5% ( Phase voltage )
Voltage aberration(Non-linear load)	THD<5% ( Phase voltage )
P.F.	0.8 ( lag )
Frequency track range	50Hz±3Hz
Frequency precision(battery inverter )	±0.1%
3 phase difference	120±0.5° ( balanceable or un-balanceable load )
100% imbalance degree of un-balanceable load voltage	±3%
Frequency track speed	<1Hz/s
Inverter overload capability	105%<load<110%, transfer to bypass after 60minutes
111%<load<125%, transfer to bypass and output after 10±0.1mintes
125%<load< 150%, transfer to bypass and output after 1 minute
Bypass overload capability	Run long time when 150% load
Hold on 100ms when load>1000%
System	System efficiency(linear load))	91%
Battery inverter efficiency(linear load)	91%
Display	LCD+LED
EMC/EMI	Conduction/ radiation	FCC Part 15, Class A
Harmonic current	IEC6 1000-3-12
Anti-jamming	EN 6 1000-4-2 .3.4..6.8.9.11 Level III ,
EN 6 1000-4-5 Level 4
Noise ( 1m )	<58dB	<62dB
