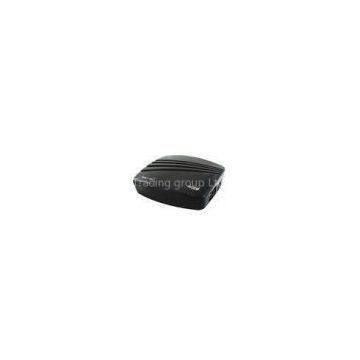

SD / HD USB ISDB-T Receiver Full HD 1080p, Multi-language Set Top Box Digital Receivers

Brand Name	Yaojin		Place of Origin	China
Model Number	1201

Delivery Time:35 days after confirm order
Certification:CE/FCC

SD / HD USB ISDB-T Receiver Full HD 1080p, Multi-language Set Top Box Digital Receivers

?ISDB-T,1201,fully SD/HD ISDB-T compliant,support full HD 1080p

Description:

1. Fully SD/HD ISDB-T compliant,support full HD 1080p

2.Support SD/HD MPEG2 and MPEG4 AVC H.264

3.Auto and manually scan all available TV and radio channels

4.Powerful and highly effective 7-day EPG function

5.Multi-language menu,subtitle and audio output supported,support closed caption(CC)

6.USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

7.Support aspect ratio 16:9, 4:3,Pan&Scan,letter box.

8.Support parental local and FAV function

9.Easy to use and attractive menu

10.Support various media files,including music,photo and movie files?

Specifications:

ISDB-T Tuner

Input frequency: 13-62 Ch(470mHz～806mHz)

Input level:-90 ～ -5dBm

Bandwidth:6 MHz

Input impedance:75 Ω

Chipset:

Mstar MSD7816

Frequency: 216 MHz

Channel Decoding

Wave form: COFDM

Demodulation: QPSK,16QAM,64QAM, QPSK or DQPSK

FEC: 1/ 2, 2/3, 3/4, 5/6. 7/8 Automatic

Mode: 2K, 4K, 8K

Guard: 1/4, 1/8, 1/16, 1/32

Demultiplexer

Standard: ISO/IEC13818-1, MPEG-4HE AAC

Input Max. bit stream rate: 23.420Mbps

Video Decoding

Standard: ISO/IEC 13818-2, MPEG-2 MP@ML, H.264

Aspect ratio: 4:3, 16:9

Video format: PAL / NTSC/ AUTO

Video resolution: 1080P/1080i/720p/576p/576i(PAL),1080P/1080i/720p/480p/480i(NTSC)

Audio Decoding

Standard: ISO/IEC 13818-3

Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3

Output mode: R/L, Coaxial, HDMI

Sampling frequency: 32, 44.1, 48KHz

AV Output

Video de-emphasis: CCIR REC.405-1, 1080i

Video bandwidth: 5.5 MHz

Video output impedance:75 Ω

Video output level: 1.0Vp-p

Audio output: Coaxial, L/R, HDMI

Audio output frequency:20Hz ~ 20KHz

Audio output impedance:Low

Audio output level: A 1.0Vrms ± 2dB into 10K

Hardware Interface

Indicators: Power, signal lock

IR Receiver: 38KHz

AV output: YUV, HDMI, Composite Video

RF Input: 75Ω F Type Female Connector

Loop Through Out: 75Ω F Type Female Connector

USB2.0

Power input Spec.: 90—260V AC 8W max
