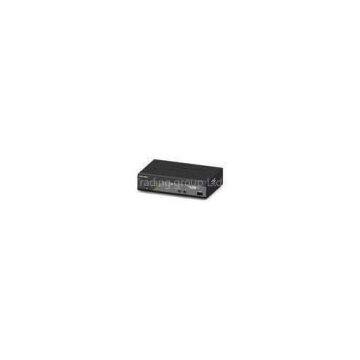

Digital TV DVB-T Receiver Box With 100 Channels memory, 7MHZ, 8MHZ software setting

Brand Name	Yaojin		Place of Origin	China
Model Number	14804

Delivery Time:35 days after confirm order
Certification:CE/FCC

Digital TV DVB-T Receiver Box With 100 Channels memory, 7MHZ, 8MHZ software setting

DVB-T,14804,DVB-T receiver with 100 channels memory, support 7MHZ,8MHZ software setting

Description:

1. Fully SD/HD DVB-T(ETSI EN 300 744) compliant,support full HD 1080p

2.Support SD/HD MPEG2 and MPEG4 AVC H.264

3.Auto and manually scan all available TV and radio channels

4.Powerful and highly effective 7-day EPG function

5.Multi-language menu,subtitle and audio output supported

6.USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

7.Support aspect ratio 16:9, 4:3,Pan&Scan,letter box.

8.Support parental local and Teletext

9.Easy to use and attractive menu

10.Support various media files,including music,photo and movie files

Specifications:

DVB-T Tuner

IF input frequency: VHF: 174MHz - 230MHz/UHF: 474MHz - 860MHz

Bandwith: 7/8MHz

Input level: -83dBm

Signal input: IEC-type female

Chipset:

Sunplus;SPHE1502

Mpeg transport stream and A/V decoding

Video standard: MPEG-4 AVC/H.264 HP@L4

SCART video model CVBS/RGB (for Europe)

Aspect ratio: 4:3, 16:9

Video resolution: 576i, 576p, 720p and 1080i,1080P

Audio standard: ISO/IEC 14.496-3,AAC, AAC+

Audio mode: mono, dual-channel, stereo

Multimedia format:

Picture: JPEG,BMP,PNG

Audio: MP3,WMA,AAC,AAC+(wma,mp3,mp4a,etc)

Video: MPEG1,MPEG2,MPEG4,H.264, DivX(mkv,ts,mp4,avi,divx,etc)

Front panel

Display LED display

USB firmware upgrade PVR and multimedia playback

Channel decoding

Standard: DVB-T

Demodulation: QPSK, 16QAM, 64QAM

FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic

Guard: 1/4,1/8,1/16,1/32

Mode: 2K, 8K

Demultiplexer

Standard ISO/IEC 13818-1; ARIB STB-B10

Input max. bit stream rate: 120Mbps (serial)/15MBps (parallel)

Rear panel output

HDMI x1

RF IN: IEC-type, connector, single tuner

SCART x 1

3.5mm earphone jack for L/R audio and coaxial

DC IN 5V-1.5A
