4 in 1 network cable detactor
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | NF-3468 |
Product Description
Description:

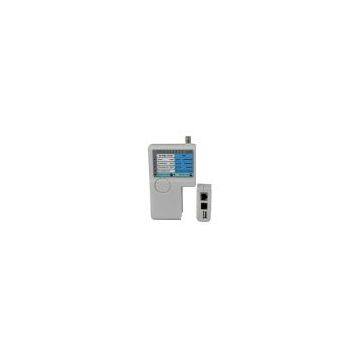

The 4 in 1 Cable Tester is capable of testing 4 common lan and computer cables, such as installed cables or patch cords with RJ-45,RJ-11,1394, USB and BNC connectors. It is intended to test cables with straight through connections,and users can get clear result on the surface: No Connection , Shorts, Opens, crosses.
Product features:
1. Tests shielded (STP) or unshielded(UTP) LAN cables
2. Test shields in 1394 and USB cables
3. Ergonomic portable handheld design
4. Tests installed wiring or patch cables
5. Remote unit stores in Main unit
6. 600 ft test distance (RJ-45/RJ-11/BNC)
7. Simple one button test
8. Convenient battery access
9. Built in battery access
10. LEDs indicate connections and faults
11. Beeper provides audible annunciation of test results
Technical parameters:
|
Cables Tested:
|
1.UTP/STP LAN cables terminated in RJ-45 connectors.(EIA/TIA 568) 2.RJ-11 cables with connectors, 2 to 6 conductors installed. 3.1394 Cables with Type 1 plugs on both ends. 4.USB cables with Type A flat plug on one end and type B square Plug on other end. 5.BNC cables with connectors. |
|
Faults Indicated: |
No Connection , Short, Open, cross |
|
Low battery Indicator: |
LED lights to indicate low battery. |
|
Case Dimensions: |
7.25*4.0*1.0 inches |
|
Weight: |
202 grams.(Without battery). |
|
Battery: |
one standard 9V alkaline battery. |
