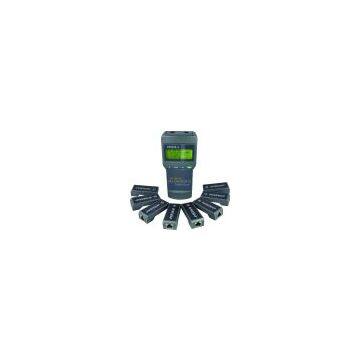

cable length tester

Overall Dimension

180×80×40mm

Power Supply

4×1.5V Size AA batteries with power consumption 16mA

Display

Special 4×16 character big screen LCD lattice (valid visual field 61.6×25.5 mm)

Cable type

STP/UTP twin twisted cable, coaxial cable, telephone line

Working  Ambient Temperature

-10~+60

Tester Port

Tester RJ45 master port(M),  tester LOOPBACK RJ45 port(L), far-end

Recognizer RJ45 port(R).  The extra BNC and RJ11 converters are used to

Measure and check the continuity of coaxial cable and telephone line.

Length Measurement of Twin Twisted Cable

Scope: 350M(3~200ft)

     Calibration accuracy:3%(±0.5M or ±.5ft)(calibrating cable≥5M)

     Shipment accuracy :5%(±0.5M or ±1.5ft).(AMP,AT& T Class 5 cable)

Length Calibration

User can set the exact length by himself based on a given length cable. And the length of cable should be more than 5M

Wire Sequence and Locating Cable Error

Check errors such as open, short circuit, reverse connection, crossover or cross-talk interference.

Locating Cable

8  far-end passive test jacks (ID 1-ID 8)

Automatic Time-delay Shut Off Time

The tester will be on standby for 30 minutes.
