Cable Length Tester

Description:

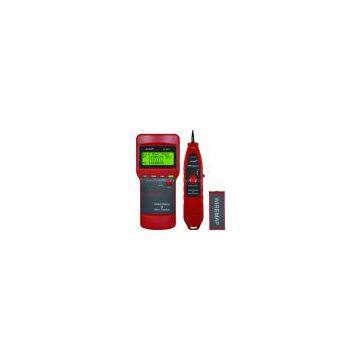

NF-8208 is an intelligent cable test & inspection instrument with lots of new functions researched and developed by our company. The equipment is composed of tester (NF-8208), receiver (NF-838-R) and remote identifier. The instrument owns three great functions of hunting, wire, sorting and circuit status testing .thus; it becomes available tool for technicians in installation and maintenance of weak current system.

It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.

Main Functions and features:

1. One person enough to complete cable continuity check.

2. The function of probing the audio and tracing the cable.

3. Check wire fault in 5E, 6E, coaxial cable and telephone line such as

open circuit, short circuit, jumper wire, reverse connection or cross-talk

interference.

4. Locate the range of wiring or connection error .

5.Measure cable length and determine the distance of open circuit and

short circuit.

6. Dynamically calibrate cable length and make length measurement as

accurate as 95%.

7. Far-end recognizer with prompting voice.

8.Self-checking function and automatically compensate any change in

battery capacity or ambient temperature.

9.Single board computer software watchdog design and reliable operation.
