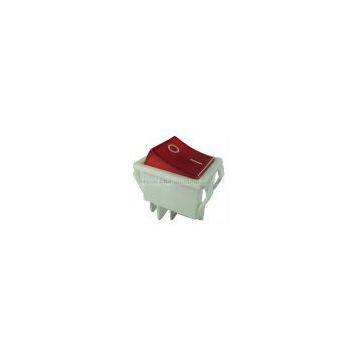

On-off Rocker Switch, OEM Available
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Thermal International | Place of Origin | China | |
| Model Number | 32*25 |
Product Description
|
On-off Rocker Switch Specifications |
|
1,Rated voltage and current:UL:20A 3/4HP 125VAC |
|
16A 1HP 250VAC |
|
VDE(ENEC):10/15/16A250VAC |
|
CQC:16A250VAC |
|
2,Mechanical Life:30000times |
|
3,Service Life:10000times |
|
4,Resistance:<20mΩ |
|
5,Insulation resistance:>1000MΩ |
|
6,Withstand voltage:>1500V/minutes, |
|
7,Ambient temperature:-10℃~+85℃ |
|
8,Storage Temperature:-10℃~+85℃ |
|
9,Ambient Humidity:Max.85 % |
|
10,Operation Force:3~8N【Depending on different function】 |
|
11,Fire rating:UL94 V-2 |
|
12,Shell Material:PA66 |
|
13,Button Material:PA66 / PC |
|
14,Contact Material: Silver Alloy |
|
15,Terminal Material:Brass(Silver plated) |
|
16,Terminal Temperature goes up:Max 30℃,【UL1054] |
|
17,Terminal Solderability:Temperature no higher than350℃,less than 3seconds. |
|
Note: |
|
When welding, do not press terminal |
|
18,Function |
|
Single stage single throw:ON-OFF,(ON)-OFF,ON-(OFF) with light ON-OFF |
|
Double stage double throw:ON-ON,ON-OFF-ON,ON-(ON),(ON)-OFF-(ON),ON-OFF-(ON) |
|
19,Shell/ button color: All colors available. |
|
20,Printing: According to client’s demand. |
