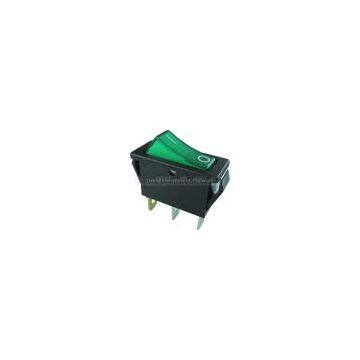

Electric Rocker Switch for Water Drinking Appliance

FOB Price

Negotiable / Kilogram

5000 Kilograms(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Thermal International		Place of Origin	China
Model Number	33X15

Packaging & Delivery

Packing Detail: Carton and plastic bags

Delivery Detail: 15 days after we receive your remittance depending on order.

Payment Terms: L/C,D/A,D/P,T/T, Western Union, MoneyGram

Supply Ability: 50000 Piece/Pieces per Day

Electric Rocker Switch Specifications
1,Rated voltage and current:UL:20A 3/4HP 125VAC
16A 1HP 250VAC
VDE(ENEC):10/15/16A 250VAC
CQC: 16A 250VAC
2,Mechanical Life:30000times
3,Service Life:10000times
4,Resistance:<20mΩ
5,Insulation resistance:>1000MΩ
6,Withstand voltage:>1500V/minutes,
7,Ambient temperature:-10℃~+85℃
8,Storage Temperature:-10℃~+85℃
9,Ambient Humidity:Max.85 %
10,Operation Force:3~8N【Depending on different function】
11,Fire rating:UL94 V-2
12,Shell Material:PA66
13,Button Material:PA66 / PC
14,Contact Material: Silver Alloy
15,Terminal Material:Brass(Silver plated)
16,Terminal Temperature goes up:Max 30℃,【UL1054]
17,Terminal Solderability:Temperature no higher than350℃,less than 3seconds.
Note:
When welding, do not press terminal
18,Function
Single stage single throw:ON-OFF,(ON)-OFF,ON-(OFF),with light ON-OFF
Single stage double throw:ON-ON,ON-OFF-ON,ON-(ON),(ON)-OFF-(ON),ON-OFF-(ON)
19,Shell/ button color: All colors available.
