Home > Products > Stainless Steel Pressure Gauges > 1/2 NPT, BSPT Glycerine - Filled Stainless Steel Pressure Gauges With Crimp Ring

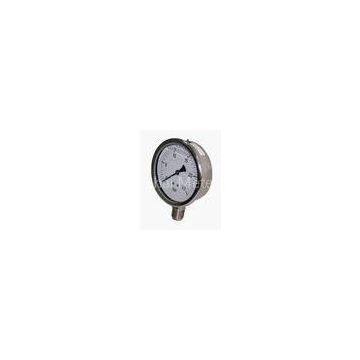

1/2 NPT, BSPT Glycerine - Filled Stainless Steel Pressure Gauges With Crimp Ring
- T/T L/C D/P D/A
- 7 days
You May Like
-
1.6% 2.5\" 3\" Silicon - Filled 316 Stainless Steel Pressure Gauges With Safety Glass
-
6\" Adjustable Pointe Stainless Steel Pressure Gauges With White Aluminium Dials
-
3\" 4\" EN 837-1 Liquid - Filled Stainless Steel Pressure Gauges for Corrosive Environments
-
3\" 4\" EN 837-1 Black Steel Bezel General Instruments Pressure Gauge For Pneumatic Systems
-
2.5% Bourdon Tube General Instruments Pressure Gauge For Pumps, Regulators
-
1/2NPT EN 837-1 Black Plastic Pointer General Instruments Pressure Gauge for Water System
Product Details
| Brand Name | S.H.M | Place of Origin | China | |
| Model Number | SHP-03 |
Product Description
Certification:ISO9001:2008
1/2”?NPT,?BSPT?Glycerine?-?filled?Stainless?Steel?Pressure?Gauges?with?Crimp?ring
Applications
* With liquid-filled case for applications with high dynamic pressure pulsations or vibration
* Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system
* Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction
Descrition:
All?Stainless?Steel?Pressure?Gauge?
Model?No.?SHP-03
Features
*?Design?EN?837-1
*?2.5\"(63mm),?3\"(80mm),?4\"(100mm)?and?6\"(150mm)?white?aluminium?dials?with?
??black?and?red?markings
*?304?stainless?steel?case
*?Window:?Polycarbonate?or?safety?glass
*?Pointer:?Black?aluminium,?fixed?or?adjustable??
*?304,?316?or?316L?stainless?steel?bourdon?tube?and?socket
*?Glycerine-filled,?silicon-filled?or?dry
*?Crimp?ring?or?bayonet?bezel
*?Restrictor?in?connection
Accuracy?class
*?2.5\":?±?2.5%?(±?1.6%?available)
*?3\":?±?1.6%
*?4\"?&?6”:?±?1.0%?
|
Model?No. |
Dial |
Form |
Flange |
Case&Bezel |
|
SHP-03 |
1.5”,2”,2.5”,3”,4”,6”,etc. |
Back?connection |
Front?flange |
Stainless?steel ?SS304 |
|
Bottom?connection |
Back?Flange |
|||
|
Bourdon?tube |
Range |
Connection |
Accuracy |
|
|
Stainless?steel SUS304 SUS316 |
Normal:?0…0.6bar?to?0…1000bar Vacuum:?-76cmHg…0 Compound:?-76cmHg..0…35bar Scale:?bar,?psi,?kg/cm2,?kPa, MPa,etc |
1/4”,3/8”,1/2” NPT,BSP,BSPT,etc. SUS304 SUS316 |
±1.0%, ±1.6%, ±2.5% |
|
|
Movement |
Liquid?Option |
|||
|
SUS304 SUS316 |
Glycerin?filled?or?dry ?with?filling?hole |
