Home > Products > Liquid Glass Thermometer > 1/2" NPT 8" Scale Hot Water Bimetal Red Organic Liquid Glass Thermometer With Steel Case
1/2" NPT 8" Scale Hot Water Bimetal Red Organic Liquid Glass Thermometer With Steel Case
- T/T L/C D/P D/A
- 7 days
You May Like
-
Red, Blue Spirit Indoor, Outdoor Home Liquid Glass Thermometer For Sea Water, Soil, Milk
-
BSPT Stainless Steel Enclosed Scale Metal Tube Liquid Glass Thermometer For Ships, HVAC
-
1.5% 36V Enclosed Scale Mercury - Filled Electric Contact Liquid Glass Thermometer
-
6\", 12\" Red, Blue Spirit Solid - Stem Liquid Glass Thermometer For Chemical Industry
-
Mercury - Filled GlassOil Laboratory Thermometers For Testing Petroleum Products
-
6\", 12\" Solid - Stem Red, Blue Spirit Glass Laboratory Thermometers For Chemical Industry
Product Details
| Brand Name | S.H.M | Place of Origin | China | |
| Model Number | SHW-01,SHW-02, SHB-03 |
Product Description
Certification:ISO9001:2008
1/2\"?NPT?8\"?Scale?Hot?Water?Bimetal?Red?Organic?Liquid?Glass?Thermometer?With?Steel?Case
Descrition:
Hot?Water?Thermometer?
Model?No.?SHW-01,?SHW-02,?SHB-03
Applications:
Hot Water Thermometers are our most economical offering in industrial thermometers. The unit features components of non-corrosive materials and its compact design and excellent readability makes the HW Series ideal for a variety of general purpose applications. Typical applications include small pipe lines, residential and commercial boilers, solar heating systems.
Type:?? Hot water glass thermometer and Hot water bimetal thermometer

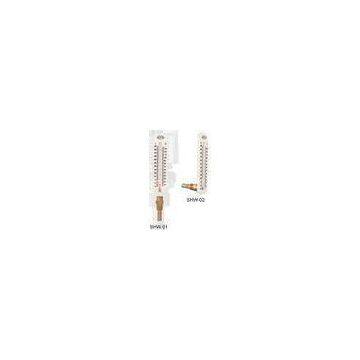

.?Hot?water?glass?thermometer
???Features:??
????*?8\"(200mm)?scale?size
????*?Red?organic?liquid?filled?glass?tube
????*?1/2\"NPT?connection,?brass?separable?well,?17/8\"?stem?length?are?standard
????*?Straight?form?and?90°?angle?form?available
|
Model?No. |
SHW-01 |
SHW-02 |
|
Size?and?Form?of?Body |
6”Straight |
6”?90°Angle |
|
Range |
5-135℃/40-280℉ |
|
|
Case?Material |
Steel?coated?with?white?plastic |
|
|
Stem?Length |
17/8” |
|
|
Connection |
1/2”NPT?Brass |
.?Hot?water?bimetal?thermometer
???Features:??
???*?2-1/2\"(63mm)?dial
????*?Steel?case,?Zinc?plated
????*?304SS?ring,?glass?window
????*?Brass?thermowell,?1/2\"NPT?connection
????*?Stem?length?2\"(50mm)?standard
????*?Zero?adjustment?at?bottom?of?stem
|
Model?No. |
SHB-03 |
|
Dial |
2”,2.5” |
|
Range |
0-120℃(℃orC&F) |
|
Case&Ring |
Case?in?steel?plated?Ring?in?stainless?steel |
|
Lens |
Glass?with?connection?&?ring |
|
Stem |
L=50mm |
|
Connection |
Back?connection?1/2”NPT,BSP |
|
Accuracy |
±2% |
