Home > Products > Oil Thermometers > 108mm Liquid - Filled High Accuracy Glass Oil Thermometers For Testing Petroleum Products
108mm Liquid - Filled High Accuracy Glass Oil Thermometers For Testing Petroleum Products
- 0 Square Meter / Square Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
+ 20 + 150 Maximal Glass Mercury Column 1% Oil Thermometers With 12 * L210 SHMX-01
-
1/2\" NPT Range -50 c - 600 c 2\" Dial Stainless Steel Bimetal Thermometer For Industrial
-
1/2\" NPT Stem 3, 4, 6 Maximum 1%, 2% Bimetal Dial Thermometer With Brass Socket
-
Dial 2 2.5 Zinc Plated Hot Water Bimetal Thermometer For Residential, Commercial Boilers
-
Dial 1 2 -60 + 50 Accuracy 1.5% Pocket Test Bimetal Thermometer With Plastic Lens
-
63mm Dial 304ss Ring 2% Hot Water Bimetal Thermometer For Solar Heating Systems
Product Details
| Brand Name | S.H.M | Place of Origin | China | |
| Model Number | SHTH |
Product Description
Certification:ISO9001:2008
108mm?Liquid?-?Filled?High?Accuracy?Glass?Oil?Thermometers?For?Testing?Petroleum?Products
Descrition:?

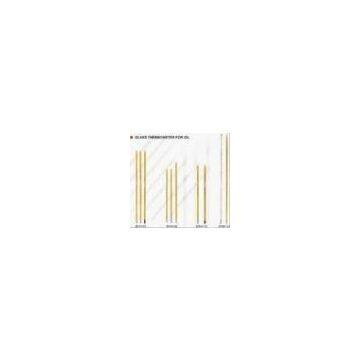

Glass?Thermometer?For?Oil?
Glass?thermometers?for?testing?of?petroleum?products
Features & Specifications:
The thermometers are with high accuracy, the minimum division of scale is 0.1°C, mercury-filled, especially for the temperature testing of petroleum industrial, according to test requirement the types include solid-stem and enclosed scale, the standard range is from -30°C to 360°C (under -30°C the liquid-filled is alcohol)
|
Model?No. |
Temp.Range |
Size(mm) |
Div. |
Immersion |
Accuracy |
|
SHTH-01 |
0+170℃ +130+300℃ |
Φ9×L250 |
1℃ |
55mm |
0-100℃?±1℃ 100-200℃?±2℃ 200-300℃?±3℃ |
|
SHTH-02 |
0+360℃ |
Φ7.5×L330 |
1℃ |
45mm |
0-260℃?±1℃ 260-300℃?±2℃ |
|
SHTH-03 |
0+60℃ +50+110℃ |
Φ8×L250 |
0.5℃ |
90mm |
±1℃ |
|
SHTH-04 |
0+150℃ +100+250℃ +200+350℃ |
Φ8.5×L250 |
1℃ |
Total?immersion |
0-210℃?±1℃ 210-350℃?±2℃ |
|
SHTH-05 |
+30+100℃ |
Φ7.5×L300 |
0.2℃ |
65mm |
±0.2℃ |
|
SHTH-06 |
-30+60℃ |
Φ10×L300 |
1℃ |
160mm |
±1℃ |
|
SHTH-07 |
0+360℃ |
Φ7.5×L350 |
1℃ |
Total?immersion |
0-100℃?±1℃ 100-200℃?±2℃ 200-300℃?±3℃ 300-400℃?±4℃ |
|
SHTH-08 |
-80+60℃ |
Φ11×L350 |
1℃ |
160mm |
From-80?to-60℃?±3℃ From-60?to-40℃?±2℃ From-40?to-20℃?±1.5℃ From-20?to-60℃?±1℃ |
|
Model?No. |
Temp.Range |
Size(mm) |
Div. |
Immersion |
Accuracy |
|
SHNH-01 |
-7+110℃ |
Φ6.5×L287 |
0.5℃ |
55mm |
±0.5℃ |
|
+90+360℃ |
2℃ |
±1.5℃ |
|||
|
-58+50℃ |
0.5℃ |
±0.5℃ |
|||
|
SHNH-02 |
+18+25℃ |
Φ6.5×L212 |
0.2℃ |
90mm |
|
