Home > Products > Tridicator Gauge > 2% 1/4 NPT, Back Bourdon Tube Back Connection Hot Water Tridicator Gauge SHTG

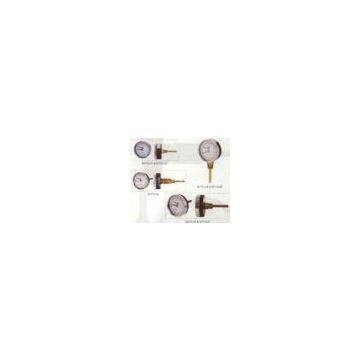

2% 1/4 NPT, Back Bourdon Tube Back Connection Hot Water Tridicator Gauge SHTG
- T/T L/C D/P D/A
- 7 days
You May Like
-
3\" 4\" 6\" Bulb 12 * 150mm Capillar Dial Gas Filled Thermometers With Glass Window
-
Rigid Dial Pyromete Diesel Exhauat Gas Filled Thermometer With Bayonet Bezel Case
-
1.5% 3 Remote Reading Dial Industrial Gas Filled Thermometer With Stainless Steel Case
-
Liquid - Filled 1.5% Pyrometer Diesel Exhaust Rigid Dial Gas Filled Thermometer AISI304
-
Rigid Dial Silicon Oil Diesel Exhauat Pyrometer Gas Filled Thermometer, Adjustable Pointer
-
1/2\"BSP 1.5% Diesel Exhauat Pyrometer Gas Filled Thermometer With Black Aluminium Case
Product Details
| Brand Name | S.H.M | Place of Origin | China | |
| Model Number | SHTG |
Product Description
Certification:ISO9001:2008
±?2%?1/4”?NPT,?Back?Bourdon?Tube?Back?Connection?Hot?Water?Tridicator?Gauge
Applications
Tridicator Gauges, specifically designed for hot water boilers, are two gauges-in-one. They measure water pressure in PSI and kPa, plus temperature in °F and °C, and easily show pressure reading and temperature reading on same one dial.
|
Model?No. |
Dial |
Connection |
Range |
Case |
Measurement Material |
Accuracy |
|
|
Pressure |
Tempressure |
||||||
|
SHTG-01 |
2.5” |
1/4”?NPT,Back |
0-75psi/ 0-500KPa |
60-320℉/ 10-160℃ |
Black Painted?steel |
Pressure: Bourdon?tube (Copper?alloy) Temperature: Bimetal?coil |
Pressure: ±3-2-3% Temperature: ±3% |
|
SHTG-02 |
2.5” |
1/4”?NPT,Extension Back |
0-75psi/ 0-500KPa |
30-240℉/ 0-120℃ |
Stem |
||
|
SHTG-03 |
2.5” |
1/4”?NPT,Back |
0-75psi/ 0-500KPa |
30-240℉/ 0-120℃ |
Brass |
||
|
SHTG-04 |
3” |
1/2”?NPT,Bottom |
0-75psi/ 0-500KPa |
30-240℉/ 0-120℃ |
|||
|
SHTG-05 |
3” |
1/2”?NPT,Back |
0-75psi/ 0-500KPa |
30-240℉/ 0-120℃ |
Window |
||
|
SHTG-06 |
3” |
1/2”?NPT,Bottom |
0-200psi/ 0-1400KPa |
30-240℉/ 0-120℃ |
Plastic,Glass |
||
|
SHTG-07 |
3” |
1/2”?NPT,Back |
0-200psi/ 0-1400KPa |
30-240℉/ 0-120℃ |
Features
*?Dial?size??2?1/2\"(63mm),?3\"(80mm)
*?Case?material??Black?steel?case
*?Lens??Acrylic?2?1/2\"(63mm),?Glass?3\"(80mm)
*?Connection?1/4\"NPT?on?2?1/2\"(63mm)?dial,?back?connection?only
????????????1/2\"NPT?on?3\"(80mm)?dial,?back?or?bottom?connection
*?Scales:??PSI?&?kPa?pressure?scales,?C?&?F?temperature?scales?are?standard
?????????Other?scales?and?ranges?available
*?Accuracy??Pressure?accuracy?±?3-2-3%?of?full?scale
????????????Temperature?accuracy?±?2%?of?full?scale?
Descrition:
Tridicator?Gauge?
Pressure?&?Temperature?gauge
Model?No.?SHTG
