4" Dial EN 837-1 Ammonia Temperature Manometer Pressure Gauge With Flange Mount

Applications:

*?Measuring?ammonia?pressure?and?temperature?

Descrition:

Ammonia?Pressure?Gauge??

Model?No.?SHP-06

Features:

*?Design?EN?837-1

*?Dial?size,?case?material,?window,?pointer:?

?2.5\"(63mm),?4\"(100mm)?dial,?black?steel?case?&?bezel,?acrylic?window,?black?aluminium?pointer

?4\"?dial,?304?stainless?steel?&?sealed?ring,?polycarbonate?window,?liquid-filled

?4\"?dial,?304?stainless?steel?&?bayonet?bezel,?safety?glass?window,?adjustable?pointer,?dry?and?fillable

*?Bottom?or?back?connection,?1/4\"?or?1/2\"?BSP,?NPT?etc.

*?Bourdon?tube:?C-type,?316?stainless?steel

*?Pressure?connection:?Zinc?plated?steel?for?black?steel?case

?316?stainless?steel?for?304?stainless?steel?case

Accuracy?class

*?2.5\":?±?1.6%?

*?4\":??±?1%

Operating?Temperature

Ambient:?-40°F?to?+140°F?(-40°C?to?+60°C)?-?dry -4°F?to?+140°F?(-20°C?to?+60°C)?-?glycerine?filled,?only?for?stainless?steel?case

-40°F?to?+140°F?(-40°C?to?+60°C)?-?silicone?filled,?only?for?stainless?steel?case

Medium:?+140°F?(+60°C)?

Options?

*?Ranges:?-1+15,?-1+25?bar?in?black,?the?refrigerant?R717(NH3)?coloured?and?in?°C

30\"Hg?/?0?/?150?psi?(84°F),??30\"Hg?/?0?/?300?psi?(126°F)?

*?SS?restrictor

*?Special?threaded?connection

*?Flange?mount

*?Clean?for?oxygen?service?n?

*?Other?pressure?connections?

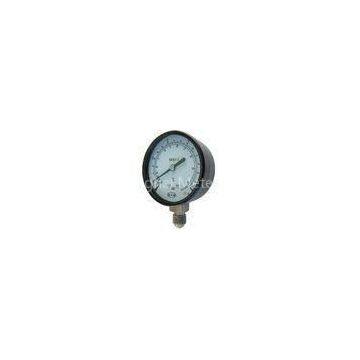

Ammonia?pressure?gauge?with?black?steel?case?

Ammonia?pressure?gauge?with?304?stainless?steel?case?
