Home > Products > New product > Mimaki cg-fxii series cutting plotter

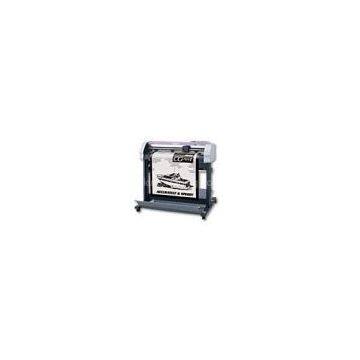

Mimaki cg-fxii series cutting plotter
Negotiable
/ Kilogram
1 Kilogram(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Mimaki | Place of Origin | China | |
| Model Number | cg-fxii |
Product Description
| CG-75FXII | CG-130FXII | CG-160FXII | |
|---|---|---|---|
| Acceptable sheet width | 90mm~1,040mm (3.54"~40.9") | 90mm~1,580mm (3.54"~62.0") | 90mm~1,880mm (3.54”~74”) |
| Acceptable roll sheet | Outer less than φ200mm , Roll weight less than 18kg | Outer less than φ200mm Roll weight less than 22kg | |
| Effective cutting area*1 | 760mm x 51m(29.9" x 167') | 1,300mm x 51m(51.2" x 167') | 1,600mm×51m(62.9”×167’) |
| Maximum auto cutting width*2 | 870mm (34.2”) | 1,425mm (56.1”) | 1,720mm (67.7”) |
| Maximum cutting speed | 100cm/s (39.3"/s) | ||
| Maximum moving speed | 140cm/s (55"/s) | ||
| Adjustable speed range*3 |
1-10cm/s : 1cm step adjustment (0.39"-3.94"/s : 0.39" step adjustment) 10-50cm/s : 5cm step adjustment (3.94"-19.68"/s : 2" step adjustment) 50-100cm/s : 10cm step adjustment (19.68"-39.37" : 3.94" step adjustment) |
||
| Mechanical resolution | 5µm(0.0002") | ||
| Command resolution | 25µm or 10µm(0.001" or 0.0004")-MGL-IIc | ||
| Repeatability |
±0.2mm (Excluding shrinkage / expansion caused by the film temperature) |
||
| Pen pressure | 400g | ||
| Range of down pressure | Cutter | 10~20g(2g step), 20~100g(5g step), 100~400g(10g step) | |
| Pouncing | 10~20g(2g step), 20~100g(5g step), 100~400g(10g step) | ||
| Pen | 10~20g(2g step), 20~100g(5g step), 100~150g(10g step) | ||
| Acceptable sheet*4 |
Vinyl up to 0.25mm(0.01")thickness, Fluorescent type vinyl Reflective sheet |
||
| Acceptable sheet for pouncing*5 | Paper thickness: 0.06~0.13mm (0.0024"~0.005") | ||
| Applicable tools*6 |
Cutter, Water based ball-point pen, Oil based ball-point pen, Pouncing tool |
||
| Type of command | MGL-IIc | ||
| Interface | RS-232C,USB | ||
| Receiver buffer size | 30MB Standard (20MB when in sorting) | ||
| Operational | Temperature | 5~35°C (41~95°F) | |
| Humidity | 35~75%(Rh) Non-condensation | ||
| Power requirement | AC100V~240V | ||
| Power consumption | 130VA or less | ||
| Dimensions (WxDxH) |
1,285mm(50.5")x 700mm(27.5")x 1,217mm(47.9") |
1,825mm(71.8")x 700mm(27.5")x 1,217mm(47.9") |
2,125mm(83.6")x 700mm(27.5")x 1,217mm(47.9") |
| Weight (with stands) | 50kg(110 lbs.) | 60kg(132 lbs.) | 69kg(152 lbs.) |
