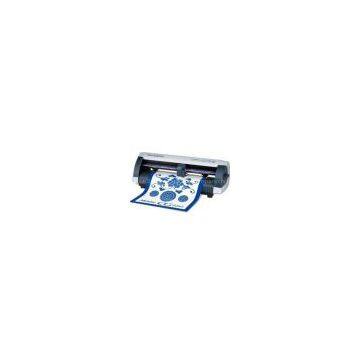

Mimaki cg-60sr paper cutter

Brand Name	Mimaki		Place of Origin	China
Model Number	cg-60sr

CG-60SR
Acceptable sheet width 90-740mm (roll sheet:90-640mm), 3.6" - 29.1" (3.6"- 25.2")
Effective cut area*1 Normal : 586mm x 51m (23.1" - 167')
Expand : 606mm x 51m (23.8" - 167')
Maximum speed 85cm/s (33.4"/s) pen-up speed at 45°
Adjustable speed range 1-10cm/s: 1cm step (0.39"-3.94"/s: 0.39" step)
10-60cm/s: 5cm step (3.94"-2.36"/s: 2.0" step)
Repeatability ±0.2mm (excluding shrinkage/expansion caused by the film temperature)
Guaranteed cutting range 586mm x 2m (23.0" - 78.7")
Maximum cutting force 400g
Range of down pressure Cutter 10~20g(2g step), 20~100g(5g step), 100~400g(10g step)
Pen 10~20g(2g step), 20~100g(5g step),100~150g(10g step)
Acceptable sheet width Marking film up to 0.25mm (0.001")
thickness: Vinyl, Fluorescent type vinyl, Reflective sheet *2
Applicable tools*3 Cutter, Water based ball-point pen, Oil based ball-point pen
Command MGL-IIc
Interface USB
Receiver buffer size 30 MB (20MB when in sorting)
Operational conditions 5~35°C(41~95°F), 35~75%Rh, No-condensation
Power requirement AC100V~240V Less than 100VA
Dimensions (WxDxH) 960 x 430 x 335mm (37.8" x 16.9" x 13.2")
Weight 18kg (39.7lbs.)
